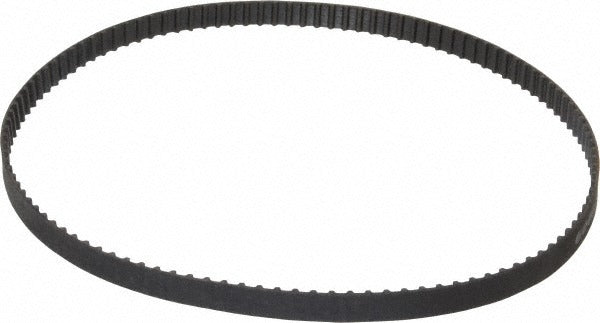

Continental Contitech 20043083 Timing Belt Xl 230XL 115T

Product Description

The CONTINENTAL CONTITECH 20043083 is an XL-series positive drive timing belt designed for precision power transmission in light-duty industrial, HVAC, and mechanical equipment applications. The belt carries 115 trapezoidal teeth on a nylon body reinforced with a fiberglass tensile cord, giving it dimensional stability under cyclic loading. With a pitch length of 230.00 mm and a belt number designation of 230XL, it conforms to standard XL-series interchangeable dimensions. Installation requires no tools beyond a basic belt-tensioning procedure and is suited for technicians familiar with synchronous drive systems.

This timing belt is used in applications where precise shaft synchronization is required without belt slippage. Typical installations include blower assemblies, pump drives, small compressor drives, and light industrial machinery that use XL-series synchronous drive pulleys. The trapezoidal tooth profile engages standard XL-pitch sprockets and pulleys. It is appropriate for both OEM replacement and new drive system builds where an XL-section belt with 115 teeth is specified.

Key Features

• XL-series positive drive profile with 115 trapezoidal teeth for precise synchronization
• Nylon belt body resists abrasion and maintains tooth geometry under repeated engagement
• Fiberglass tensile cord provides high dimensional stability and low stretch under load
• Belt number 230XL conforms to standard XL-series interchangeable sizing
• Pitch length of 230.00 mm suits a wide range of XL-compatible drive sprockets

Compatibility

Designed as a direct replacement for drives specifying a 230XL timing belt with 115 teeth and XL-series positive drive geometry. Compatible with standard XL-pitch synchronous drive sprockets and pulleys.

Installation Notes

A licensed mechanic or qualified technician should de-energize and lock out the equipment before replacing a timing belt. Remove drive guards and relieve tension on the existing belt before removal. When installing the 230XL belt, verify pulley alignment and set tension per the drive manufacturer's specification to avoid premature tooth wear. Do not over-tension; excessive tension accelerates bearing and cord fatigue.
