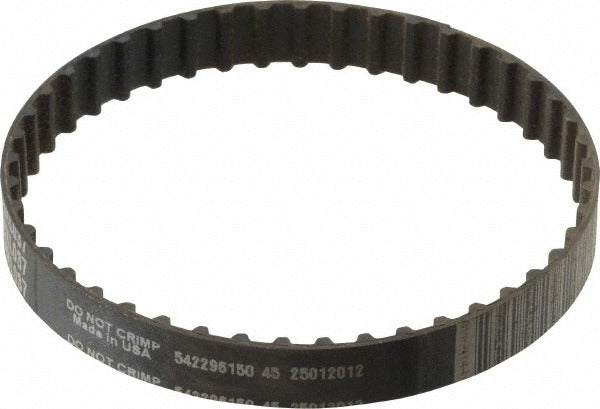

Continental Contitech 20043069 Xl Timing Belt 90XL

Product Description

The CONTINENTAL CONTITECH 20043069 is an XL-series positive-drive timing belt designed for precision power transmission applications. Built with a nylon body and a fiberglass tensile cord, this belt delivers consistent pitch length and low stretch under load. The trapezoidal tooth profile provides positive engagement with XL-series timing pulleys, reducing slippage and maintaining synchronization across the drive system. With 45 teeth and a 9.0-inch internal length, it fits a defined range of industrial and light-duty drive configurations. Licensed technicians and mechanical maintenance professionals typically specify this belt for HVAC blower assemblies, pump drives, and other belt-driven equipment requiring precise timing.

This belt is suited for applications where synchronous drive performance is required in compact or space-constrained drive systems. The XL section is a standard pitch used in light industrial equipment, HVAC air handlers, and similar rotating equipment. It is a direct replacement for worn or failed XL-series belts of the same belt number. The 90XL designation identifies the pitch length and section, making cross-referencing to compatible pulleys and drive systems straightforward.

Key Features

• XL-series trapezoidal tooth profile for positive drive synchronization
• 45-tooth count with a 9.0-inch internal belt length
• Nylon belt body resists wear and maintains tooth form under cyclic loading
• Fiberglass tensile cord minimizes stretch and maintains pitch accuracy
• Standard 90XL belt number for easy cross-reference to pulleys and replacement specs

Compatibility

Designed as a standard XL-series replacement timing belt for drives specifying a 90XL belt. Compatible with XL-profile timing pulleys in applications matching the 45-tooth count and 9.0-inch internal length.

Installation Notes

Installation should be performed by a qualified technician following the equipment manufacturer service procedures. Always de-energize and lock out the drive system before replacing the belt. Do not force the belt over pulley flanges; loosen the drive tensioner to allow proper seating of the tooth profile. Verify pulley alignment and belt tension per the equipment manufacturer specifications before returning the system to service.
