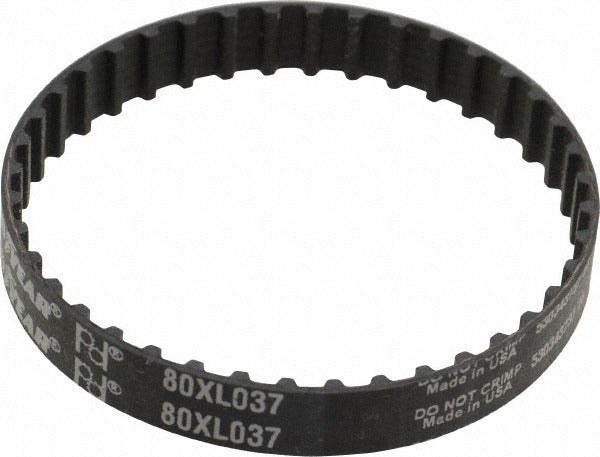

Continental Contitech 20043068 Timing Belt Xl 40T 80XL

Product Description

The CONTINENTAL CONTITECH 20043068 is an XL-series positive-drive timing belt designed for precise, synchronous power transmission in light industrial and mechanical drive applications. The belt is constructed from nylon with a fiberglass cord reinforcement, delivering stable pitch length and resistance to elongation under cyclic load. With 40 trapezoidal teeth and a pitch length of 80.00 mm, this belt maintains accurate indexing and consistent drive ratios across its service life. Technicians and machine builders select this belt for applications where slippage or timing deviation would cause equipment malfunction or product damage.

This timing belt is suited for light-duty mechanical drive systems including office equipment, small conveyors, CNC machines, robotics, pumps, and other machinery requiring positive drive synchronization. The XL series designation indicates a standardized tooth pitch that is widely used across OEM and replacement drive assemblies. It is installed by mechanical technicians, industrial maintenance personnel, and equipment assemblers working on belt-driven motion control systems.

Key Features

• XL-series positive drive profile with trapezoidal tooth geometry for accurate synchronization
• 40 teeth with a pitch length of 80.00 mm for consistent indexing performance
• Nylon belt material for lightweight, low-noise operation in enclosed drive systems
• Fiberglass cord construction minimizes stretch and maintains drive accuracy over time
• Standardized 80XL belt number for straightforward OEM and aftermarket replacement

Compatibility

Designed as an OEM-style replacement timing belt for XL-series positive drive systems requiring a 40-tooth, 80XL belt with trapezoidal tooth profile and 80.00 mm pitch length.

Installation Notes

Installation is typically performed by mechanical technicians or industrial maintenance personnel. Disconnect and lock out all power to the drive system before removing the existing belt or accessing the drive pulleys. Verify that replacement pulley grooves match the XL trapezoidal tooth profile before installation. Do not force the belt over pulley flanges; adjust center distance as needed to allow proper seating, then re-tension per the equipment manufacturer specifications.
