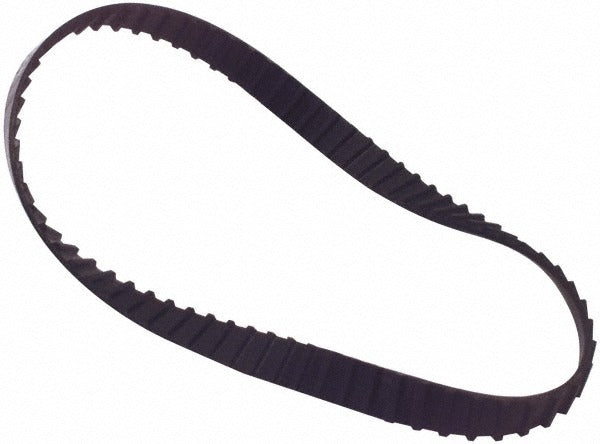

Continental Contitech 20043066 Xl Timing Belt 60XL 30T

Product Description

The CONTINENTAL CONTITECH 20043066 is an XL-series positive-drive timing belt designed for precision power transmission in mechanical and industrial drive applications. Constructed from nylon with a fiberglass cord reinforcement, this belt delivers dimensional stability and resistance to stretch under cyclic load. It features a trapezoidal tooth profile with 30 teeth and a pitch length of 60.00 millimeters, corresponding to the standard 60XL belt designation. Technicians and machine builders select this belt when synchronous, non-slip power transfer is required between shafts in light-duty drive systems.

The 60XL belt is suited for use in industrial machinery, HVAC equipment drives, automated equipment, and other applications requiring a synchronized belt drive. The XL series is a widely standardized pitch used across OEM and aftermarket drive assemblies. Installation is common in both original equipment manufacturing settings and field replacement scenarios where a worn or failed timing belt must be swapped out to restore drive synchronization.

Key Features

• XL-series positive-drive design ensures no-slip synchronous power transfer
• Trapezoidal tooth profile for positive engagement with mating XL pulleys
• Nylon construction provides durability and resistance to wear
• Fiberglass cord reinforcement minimizes belt stretch under load
• 60XL belt number with 30 teeth and 60.00 mm pitch length
• Sold individually — package quantity of 1

Compatibility

Designed as an OEM-style replacement for XL-series positive-drive timing belt applications requiring a 60XL belt with 30 trapezoidal teeth and a 60.00 mm pitch length.

Installation Notes

Timing belt replacement is typically performed by a qualified mechanical technician. Before servicing, de-energize and lock out the drive system following applicable LOTO procedures. Verify that the mating pulleys are XL-section compatible and inspect pulley flanges and set screws for wear before installing the new belt. Do not force the belt over pulley flanges using tools that could damage the cord or tooth profile.
