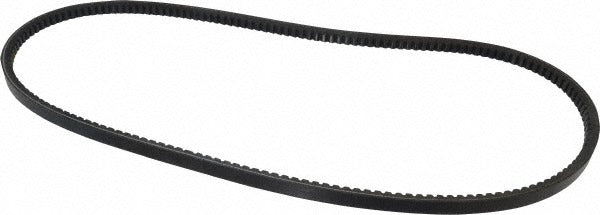

Continental Contitech 20042860 Cogged V-belt 5L 55 in

Product Description

The CONTINENTAL CONTITECH 20042860 is a fractional horsepower cogged V-belt designed for power transmission in HVAC, refrigeration, and light industrial drive applications. Built from high-traction rubber, this 5L-section belt measures 55 inches in outside length with an internal length of 53.80 inches. The cogged construction reduces bending resistance, which lowers heat buildup and improves efficiency on smaller-diameter sheaves. It carries belt number 5L550 and is rated for continuous service from -40 degrees C up to 140 degrees C, making it suitable for both indoor mechanical rooms and outdoor installations exposed to seasonal temperature swings.

This belt is used in fractional horsepower drive systems commonly found in residential and light commercial HVAC equipment, including belt-drive air handlers, furnace blowers, condenser fan assemblies, and ventilation units. The 5L section is a standard fractional horsepower profile widely used wherever a compact, high-grip drive belt is required. HVAC technicians and mechanical contractors are the primary installers. The abrasion-resistant and ozone-resistant compound extends service life in environments with airborne contaminants or UV exposure.

Key Features

• Cogged belt profile reduces flex resistance and heat generation on small-diameter sheaves
• High-traction rubber compound delivers positive grip under variable load
• Abrasion-resistant and ozone-resistant construction for extended outdoor or mechanical-room service life
• Wide operating temperature range: -40 degrees C to 140 degrees C
• Standard 5L section profile fits fractional horsepower sheaves without modification
• Belt number 5L550 for direct cross-reference during field replacement

Compatibility

Designed as an OEM-style replacement for fractional horsepower belt-drive systems using a 5L-section sheave with a 55-inch outside circumference requirement.

Installation Notes

Belt replacement should be performed by a qualified HVAC technician or mechanical contractor. Always de-energize and lock out the equipment before removing the belt guard or accessing the drive assembly. Do not pry the belt onto the sheave with tools that could nick the rubber compound; instead, release sheave center distance to allow slack installation. After installation, verify proper belt tension and sheave alignment before returning the unit to service.
