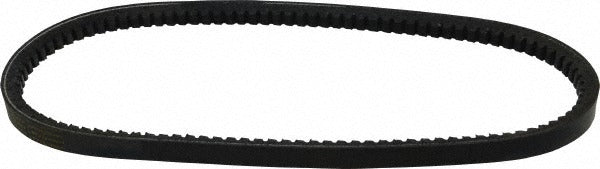

Continental Contitech 20042837 Cogged V-belt 5L 32 in

Product Description

The CONTINENTAL CONTITECH 20042837 is a cogged fractional horsepower V-belt designed for power transmission in light-duty mechanical drive systems. Manufactured from high traction rubber, this belt carries the 5L section designation with a 32-inch outside length and a 30.8-inch internal length. The cogged profile reduces bending resistance, improves flexibility on smaller sheaves, and increases heat dissipation compared to standard V-belt designs. Rated for a maximum working temperature of 140 degrees C and a minimum of -40 degrees C, this belt handles demanding environmental conditions. Technicians and maintenance professionals install this belt on HVAC blower drives, fan assemblies, and other fractional horsepower equipment.

This belt is suited for residential and light commercial applications where 5L-section drives are specified. Common installations include air handler fan drives, evaporative cooler motors, agricultural equipment, and general-purpose machinery using fractional horsepower sheave systems. The cogged construction allows the belt to flex cleanly around smaller drive pulleys without excessive heat buildup. The abrasion-resistant and ozone-resistant rubber compound extends service life in outdoor and mechanical room environments where belt degradation from environmental exposure is a concern.

Key Features

• Cogged V-belt profile reduces bending resistance and improves sheave grip on small-diameter pulleys
• High traction rubber construction provides abrasion resistance and ozone resistance
• Wide temperature range: -40 degrees C minimum to 140 degrees C maximum working temperature
• 5L section designation with 32-inch outside length and 30.8-inch internal length
• Fractional horsepower rated for blower, fan, and light mechanical drive applications
• Sold individually — minimum order quantity of 1

Compatibility

Designed as a direct replacement for 5L320 section V-belts used in fractional horsepower drive systems including HVAC air handlers, evaporative coolers, and light-duty fan assemblies that require a 32-inch outside length 5L-profile belt.

Installation Notes

Belt replacement is typically performed by HVAC technicians or maintenance mechanics. Disconnect and lock out electrical power to the drive unit before removing the old belt. Adjust sheave spacing to allow belt installation without forcing the belt over the pulley flanges — never use a screwdriver or pry tool to seat a V-belt. After installation, verify proper tension and alignment per the equipment manufacturer's drive specifications before returning the system to service.
