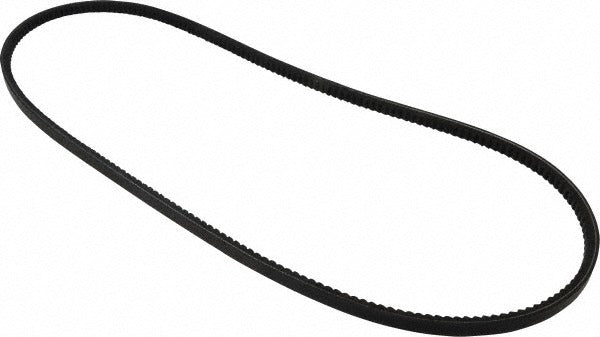

Continental Contitech 20042779 Cogged V-belt 4L 51 in

Product Description

The CONTINENTAL CONTITECH 20042779 is a cogged fractional horsepower V-belt designed for use in light-duty power transmission applications. Belt number 4L510, it features a 4L cross-section with a 51-inch outside length and a 50-inch internal length. Constructed from high traction rubber, this belt delivers reliable grip and flex across a wide operating temperature range of -40 degrees C to 140 degrees C. The cogged design reduces bending resistance and heat buildup, making it well suited for smaller-pulley, variable-speed, and high-flex drive systems. HVAC technicians, equipment service pros, and maintenance personnel are the typical installers.

This belt is commonly used in residential and light commercial HVAC equipment, fans, blowers, compressors, and other fractional horsepower drive applications that accept a 4L-section V-belt. The cogged profile allows use on smaller-diameter sheaves without the flex fatigue associated with standard V-belts. It is rated for abrasion resistance and ozone resistance, extending service life in outdoor and mechanically demanding environments.

Key Features

• 4L section cogged fractional horsepower V-belt for high-flex drive systems
• 51-inch outside length (50-inch internal length) — belt number 4L510
• High traction rubber construction for reliable power transfer
• Abrasion resistant and ozone resistant for extended service life
• Wide operating temperature range: -40 degrees C to 140 degrees C
• Cogged profile reduces heat buildup and allows smaller-sheave applications

Compatibility

Designed as a direct-replacement fractional horsepower V-belt for drives requiring a 4L-section belt with a 51-inch outside length. Verify sheave groove profile and center distance before installation.

Installation Notes

Installation is typically performed by HVAC technicians or mechanical maintenance professionals. Always de-energize and lock out the equipment before servicing belt drives. Never pry or force the belt over sheave flanges — adjust center distance to allow proper belt seating. After installation, verify belt tension and alignment per the equipment manufacturer's specifications before returning the unit to service.
