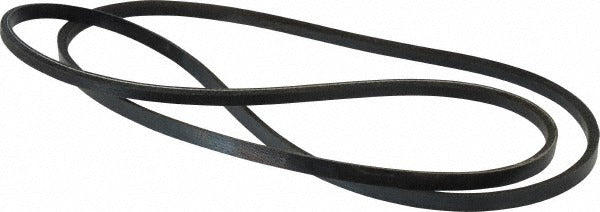

Continental Contitech 20042730 Cogged V-belt 3L 61in

Product Description

The CONTINENTAL CONTITECH 20042730 is a fractional horsepower cogged V-belt engineered for reliable power transmission in light-duty mechanical drive applications. Manufactured from high traction rubber, this 3L-section belt measures 61.0 inches in outside length with a 60.30-inch internal length. The cogged construction reduces bending resistance and heat buildup, improving efficiency and flex life over standard wrapped belts. Rated for a maximum working temperature of 140 degrees C and a minimum working temperature of -40 degrees C, it handles a wide range of operating environments. Licensed HVAC technicians, equipment mechanics, and millwrights commonly install this belt during blower, fan, and motor drive maintenance.

This 3L-section fractional horsepower V-belt is suited for residential and light commercial HVAC systems, shop equipment, agricultural machinery, and other belt-driven applications that use fractional horsepower drives. It is also a common replacement belt for furnace blower assemblies, air handlers, evaporative coolers, and small compressor drives. The cogged profile is compatible with standard 3L-groove sheaves and pulleys. The belt number 3L610 is the standard industry designation and can be referenced when cross-checking OEM belt specifications.

Key Features

• Cogged construction reduces bending resistance and extends flex life compared to standard wrapped belts
• High traction rubber compound delivers consistent grip under varying load conditions
• Abrasion resistant and ozone resistant for durability in demanding environments
• Wide temperature range: -40 degrees C minimum to 140 degrees C maximum working temperature
• 3L section profile fits standard fractional horsepower sheaves and pulleys
• Industry belt number 3L610 for straightforward cross-referencing and replacement sourcing

Compatibility

Designed as an OEM-style replacement for fractional horsepower belt-driven equipment using 3L-section V-belt sheaves with a 61.0-inch outside length requirement. Belt number 3L610 is the standard cross-reference designation.

Installation Notes

Belt replacement should be performed by a qualified technician with the drive system fully de-energized and locked out per OSHA lockout/tagout procedures. Do not use tools to force the belt over sheave flanges; loosen the motor mounting to relieve tension before removal and installation. Inspect sheave grooves for wear or damage before installing a new belt. Set belt tension according to the equipment manufacturer's deflection or tension specifications after installation.
