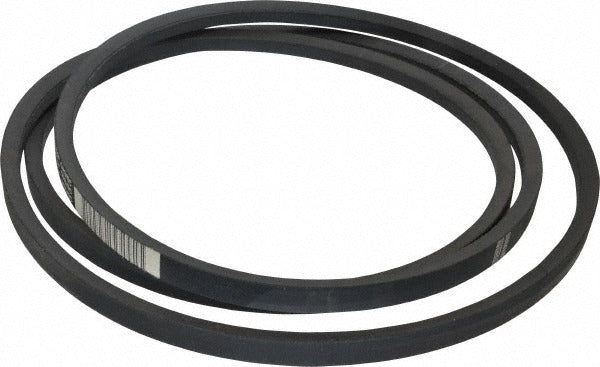

Continental Contitech 20042124 V-belt Section B 111 in B108

Product Description

The CONTINENTAL CONTITECH 20042124 is a Section B classical V-belt designed for industrial and commercial power transmission applications. Built with Wingprene rubber-impregnated fabric construction, this belt delivers reliable grip and flexibility across a wide operating temperature range of -40 degrees F to 284 degrees F (-40 C to 140 C). With an outside length of 111 inches and an internal length of 109.80 inches, it is engineered to the B108 belt designation under the HY-T Matchmaker product line. Mechanical contractors, HVAC technicians, and industrial maintenance professionals install this belt on fan, blower, and pump drive systems.

This belt is used in residential and commercial HVAC systems, industrial machinery, and general power transmission drive setups where a Section B profile is specified. The B108 designation makes it a direct-fit replacement for OEM-specified belts of the same cross-section and length. Typical installations include blower assemblies, air handlers, compressors, and pump drives requiring a matched or single-belt configuration. The HY-T Matchmaker designation indicates the belt is matched for use in multi-belt drive systems where consistent length tolerances are critical to balanced load sharing.

Key Features

• Section B profile with 111-inch outside length and 109.80-inch internal length
• Wingprene rubber-impregnated fabric construction for durability and heat resistance
• Operating temperature range: -40 degrees F to 284 degrees F (-40 C to 140 C)
• HY-T Matchmaker designation for use in matched multi-belt drive systems
• B108 belt number for straightforward OEM cross-reference and replacement
• Lightweight at 1.2 pounds for ease of handling during installation

Compatibility

Designed as an OEM-style replacement for Section B V-belt applications specifying the B108 belt number. Suitable for single or matched-set installations on drives requiring Section B cross-section geometry.

Installation Notes

Installation is typically performed by HVAC technicians or mechanical maintenance professionals. Always de-energize and lock out the drive motor before removing or installing belts, following NFPA 70E lockout/tagout procedures. Adjust drive sheave spacing to allow belt installation without forcing or prying, then tension according to the equipment manufacturer's specified deflection method. Never apply belt dressing compounds to Wingprene or rubber-impregnated fabric belts, as this degrades the belt material.
