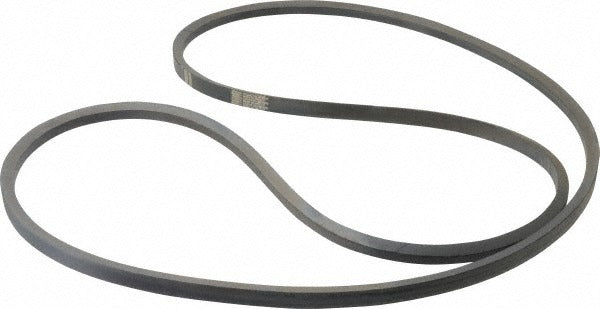

Continental Contitech 20042110 V-belt Section B 95 Inch B92

Product Description

The CONTINENTAL CONTITECH 20042110 is a Section B V-belt designed for power transmission applications in HVAC, industrial, and mechanical drive systems. Built from Wingprene rubber-impregnated fabric, this belt carries the belt number B92 and measures 95.0 inches in outside length with an internal length of 93.80 inches. The HY-T Matchmaker style construction provides consistent cross-section geometry, which is critical when matching belts in multi-belt drive configurations. Rated for a working temperature range of -40 degrees C to 140 degrees C, it handles demanding duty cycles without glazing or cracking. HVAC technicians, millwrights, and mechanical contractors are the primary installers.

This belt is suited for residential and light commercial HVAC equipment, air handlers, fans, blowers, and general industrial machinery that use standard Section B sheaves and pulleys. It is commonly installed on belt-driven supply fans, condenser fan assemblies, and auxiliary drive systems where a 95-inch outside circumference Section B belt is specified. The B92 designation follows classical V-belt sizing standards, making cross-referencing to OEM belt callouts straightforward for experienced technicians.

Key Features

• Section B profile with 95.0-inch outside length and 93.80-inch internal length
• Wingprene rubber-impregnated fabric construction for oil, heat, and abrasion resistance
• HY-T Matchmaker style for matched-set compatibility in multi-belt drive applications
• Rated operating range of -40 degrees C to 140 degrees C
• Classical B92 belt number for easy OEM cross-reference

Compatibility

Designed as an OEM-style replacement for drive systems specifying a Section B classical V-belt with a 95-inch outside length. Cross-references to the industry-standard B92 belt designation.

Installation Notes

Installation should be performed by a qualified HVAC technician or mechanical contractor with the equipment fully powered down and locked out per OSHA lockout/tagout procedures. Never force a belt onto a sheave using a pry bar, as this can damage the cord structure and reduce belt life. Adjust drive tension according to the equipment manufacturer's deflection specification and re-check tension after the first few hours of operation. Inspect sheave grooves for wear or misalignment before installing a replacement belt.
