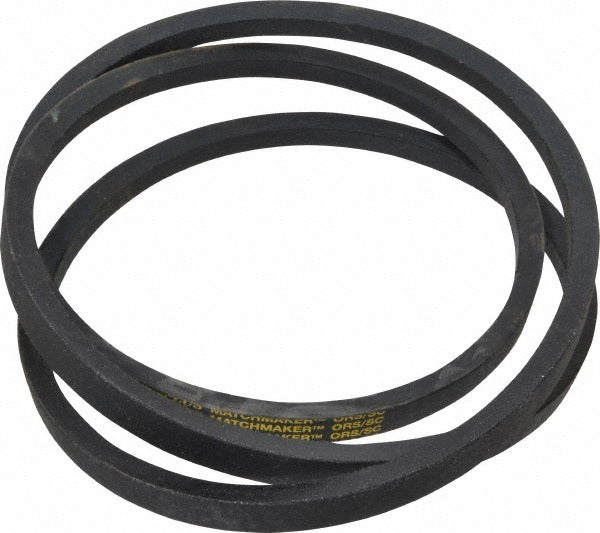

Continental Contitech 20042099 V-belt Section B 84in B81

Product Description

The CONTINENTAL CONTITECH 20042099 is a Section B V-belt designed for industrial and mechanical drive applications across HVAC, agricultural, commercial, and light industrial equipment. Built from Wingprene rubber-impregnated fabric, this belt delivers reliable power transmission in demanding operating environments. It carries the B81 belt designation with an outside length of 84 inches and an internal length of 82.80 inches. The HY-T Matchmaker style construction ensures consistent dimensional uniformity, which is critical when running matched sets on multi-groove drives. It is sold individually and weighs 0.9 pounds.

This V-belt fits Section B drive configurations commonly found on fan and blower assemblies, compressors, pumps, and other belt-driven mechanical systems in residential and commercial HVAC equipment as well as general industrial machinery. The wide temperature tolerance, rated from -40 degrees C to 140 degrees C, makes it suitable for both outdoor and enclosed equipment across a broad range of climates and operating conditions. Technicians and mechanics working on routine belt replacement or seasonal preventive maintenance will find this a direct-fit Section B replacement.

Key Features

• Section B V-belt profile with 84-inch outside length and 82.80-inch internal length
• Wingprene rubber-impregnated fabric construction for durability and flex resistance
• HY-T Matchmaker style for dimensional consistency in matched-set drive applications
• Wide operating temperature range: -40 degrees C minimum to 140 degrees C maximum
• B81 belt designation for straightforward cross-reference and replacement identification

Compatibility

Designed as an OEM-style replacement for Section B V-belt drive systems. Compatible with any drive sheave or pulley configured for a standard Section B belt profile with an outside length of 84 inches (B81 designation).

Installation Notes

Belt replacement should be performed by a qualified mechanic or HVAC technician with the drive system fully de-energized and locked out per OSHA lockout/tagout procedures. Inspect all sheaves and pulleys for wear or misalignment before installing the new belt. Never pry or roll a V-belt onto a sheave under tension; loosen the motor mount to provide slack before seating the belt. When replacing belts on multi-groove drives, replace all belts in the set simultaneously to maintain load balance.
