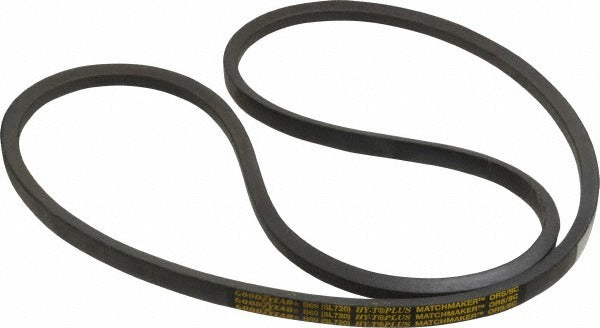

Continental Contitech 20042087 V-belt Section B 72 in B69

Product Description

The CONTINENTAL CONTITECH 20042087 is a Section B V-belt designed for power transmission in HVAC, industrial, and mechanical drive applications. Built with Wingprene rubber-impregnated fabric, it delivers resistance to heat, oil, and environmental wear. This belt carries a 72-inch outside length and a 70.80-inch internal length, corresponding to the standard B69 belt designation. It is rated for operating temperatures from -40 degrees F to 284 degrees F (-40 degrees C to 140 degrees C), making it suitable for both cold-start and high-heat environments. HVAC technicians and mechanical contractors install this belt as a direct replacement in fan, blower, and pump drive systems.

This V-belt is used in residential and light commercial HVAC systems, industrial blowers, compressors, and general-purpose belt-drive equipment wherever a standard Section B profile is specified. The HY-T Matchmaker designation indicates it is engineered for use in matched sets on multi-groove sheave drives, though it is equally suitable for single-belt applications. Install scenarios include air handler fan drives, condenser fan assemblies, and belt-driven pump systems requiring a B69-spec belt.

Key Features

• Section B profile with 72-inch outside length and 70.80-inch internal length matches B69 standard designation
• Wingprene rubber-impregnated fabric construction provides resistance to heat, oil mist, and abrasion
• Wide operating temperature range: -40 degrees C to 140 degrees C suits cold-climate and high-heat drive systems
• HY-T Matchmaker style supports matched-set applications on multi-groove drives
• Sold individually; compatible with standard B-section sheaves and pulleys

Compatibility

Designed as an OEM-style replacement for any drive system specifying a Section B, B69 V-belt with a 72-inch outside length and standard B-section sheave groove profile.

Installation Notes

Installation should be performed by a qualified HVAC technician or mechanical contractor. Disconnect and lock out all power to the drive system before removing the old belt or installing a replacement. Never force a belt onto a sheave with a pry bar; loosen the drive motor mount to reduce center distance and allow the belt to seat naturally. Verify sheave alignment and inspect for sheave wear before installing the new belt to avoid premature failure.
