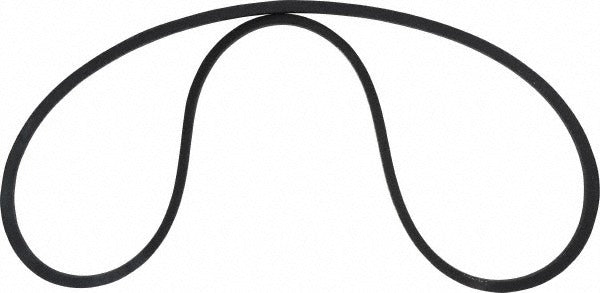

Continental Contitech 20042084 V-belt Section B 69 in B66

Product Description

The CONTINENTAL CONTITECH 20042084 is a Section B V-belt designed for industrial and HVAC drive applications requiring a dependable, flexible power transmission solution. Built with Wingprene rubber-impregnated fabric construction, this belt delivers strong resistance to heat, oil, and static loads across a wide operating temperature range of -40 degrees F to 284 degrees F (-40 degrees C to 140 degrees C). The belt carries an outside length of 69.0 inches and an internal length of 67.80 inches, conforming to the standard B66 designation. It installs into conventional B-section sheaves and is well suited for HVAC blower drives, fan systems, compressor drives, and general industrial power transmission equipment.

This V-belt is commonly installed in light commercial and residential HVAC systems, agricultural equipment, industrial machinery, and pump drives that use standard B-section pulley configurations. The HY-T Matchmaker style designation indicates it is engineered for use in matched sets when multiple-belt drive arrangements are required, ensuring consistent load sharing across belt sets. Technicians servicing air handling units, condenser fan assemblies, or belt-driven blowers will find this belt a direct-fit replacement in standard B66 drive configurations.

Key Features

• Section B profile with 69.0-inch outside length and 67.80-inch internal length
• Wingprene rubber-impregnated fabric construction for oil and heat resistance
• Wide operating temperature range: -40 degrees C to 140 degrees C
• HY-T Matchmaker style — suitable for matched-set multiple-belt drives
• Conforms to standard B66 belt designation for broad sheave compatibility
• Lightweight at 0.7 pounds for easy single-technician handling

Compatibility

Designed as a standard B66 Section B V-belt replacement for equipment using B-section sheaves and pulleys in HVAC, industrial, and mechanical drive applications.

Installation Notes

Installation is typically performed by HVAC technicians or millwrights. Always de-energize the unit and lock out or tag out the power source before removing or installing drive belts. Adjust sheave centers to relieve tension before removal, then re-tension the new belt to manufacturer drive specifications after installation. Do not pry belts over sheave flanges, as this can damage the belt cords and reduce service life.
