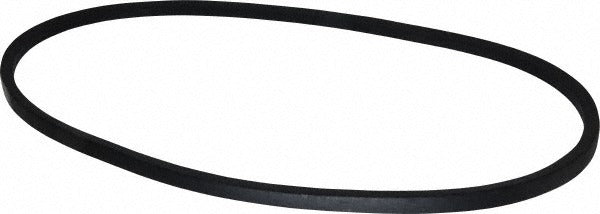

Continental Contitech 20042066 V-belt Section B 51 in B48

Product Description

The CONTINENTAL CONTITECH 20042066 is a Section B V-belt designed for power transmission applications in HVAC, industrial, and mechanical drive systems. Built with Wingprene rubber-impregnated fabric construction, this belt delivers reliable performance across a wide temperature range, from -40 degrees F to 284 degrees F (140 degrees C). It carries the belt number B48 and measures 51.0 inches outside length with an internal length of 49.80 inches. Licensed HVAC technicians, millwrights, and mechanical contractors install this belt as a direct OEM-style replacement or new drive component on fan, blower, and pump assemblies.

This B-section V-belt is suited for residential and commercial HVAC equipment, including air handlers, rooftop units, condenser fans, and belt-driven blower assemblies. The HY-T Matchmaker style is engineered for use in matched-belt drive systems where consistent cross-section geometry is critical for even load sharing. It is also commonly used in agricultural, light industrial, and pump drive applications wherever a B48 cross-reference or Section B belt with a 51-inch outside circumference is specified.

Key Features

• Section B profile with 51.0-inch outside length and 49.80-inch internal length for accurate drive fit
• Wingprene rubber-impregnated fabric construction resists oil, heat, and flex fatigue
• Rated for operating temperatures from -40 degrees C to 140 degrees C (-40 degrees F to 284 degrees F)
• HY-T Matchmaker style supports matched-set belt drive configurations
• Belt number B48 cross-reference for fast identification and replacement sourcing
• Lightweight at 0.5 pounds, minimizing drive imbalance on high-speed blower applications

Compatibility

Designed as an OEM-style replacement for Section B V-belt drives requiring a B48 belt with a 51.0-inch outside length. Suitable for any drive system specifying a standard B-section V-belt of this length.

Installation Notes

V-belt replacement is typically performed by licensed HVAC technicians or qualified mechanical contractors. Always de-energize the unit at the disconnect and lock out or tag out before removing belt guards or accessing the drive. Adjust sheave center distance to allow belt installation without forcing it over the pulley flanges, then tension according to the equipment manufacturer's deflection specification. Inspect sheave grooves for wear or misalignment before installing a new belt.
