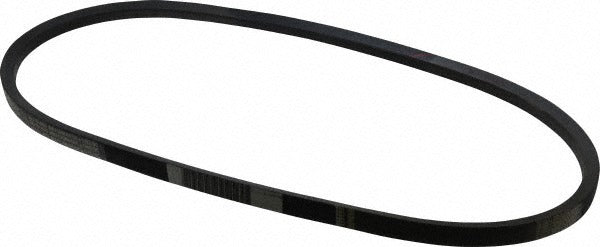

Continental Contitech 20042061 V-belt Section B 46 in B43

Product Description

The CONTINENTAL CONTITECH 20042061 is a Section B classical V-belt designed for industrial and HVAC drive applications requiring reliable power transmission. Built from Wingprene rubber-impregnated fabric, this belt delivers resistance to heat, oil, and environmental exposure across a wide operating temperature range of -40 degrees F to 284 degrees F (equivalent to -40 degrees C to 140 degrees C). With a 46-inch outside length and a 44.80-inch internal length, the 20042061 is part of the HY-T Matchmaker matched belt system, which is engineered for use in banded or individual drive configurations where consistent tension and reduced vibration are critical.

This Section B V-belt is suited for residential and light commercial HVAC systems, fan drives, blower assemblies, compressor drives, and general industrial machinery. It is a direct-fit replacement in applications calling for a B43 belt designation. HVAC technicians, millwrights, and mechanical contractors typically install this belt during preventive maintenance cycles or following belt failure on belt-driven air handling, refrigeration, and ventilation equipment.

Key Features

• Section B profile for standard B-section sheaves and pulleys
• Wingprene rubber-impregnated fabric construction for heat and oil resistance
• Wide temperature range: -40 degrees C minimum to 140 degrees C maximum operating temperature
• HY-T Matchmaker design for use in matched sets on multi-belt drives
• 46-inch outside length with 44.80-inch internal length for precise fitment
• Belt Number B43 for direct cross-reference and replacement identification

Compatibility

Designed as a direct replacement for applications requiring a B43 Section B V-belt in belt-driven HVAC, fan, blower, and general industrial drive systems using standard B-section sheaves.

Installation Notes

Installation should be performed by a qualified HVAC technician or mechanical contractor. Disengage and lock out all power to the drive unit before removing or installing the belt. Never force a belt onto a sheave using a pry bar, as this can damage the belt cords and reduce service life. After installation, verify proper tension and alignment per the equipment manufacturer specifications before returning the unit to service.
