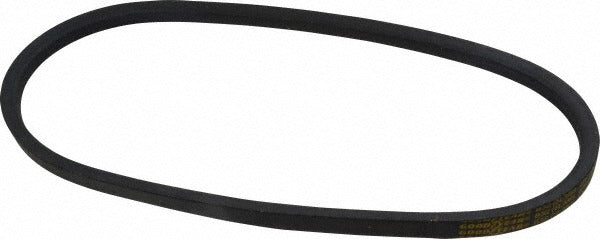

Continental Contitech 20042050 V-belt Section B 35 in B32

Product Description

The CONTINENTAL CONTITECH 20042050 is a Section B classical V-belt designed for power transmission in HVAC, industrial, and mechanical drive applications. Built from Wingprene rubber-impregnated fabric, this belt delivers reliable flex and heat resistance across a wide operating temperature range of -40 degrees C to 140 degrees C. It carries the B32 belt designation, with a 35.0-inch outside length and a 33.80-inch internal length. HVAC technicians, mechanical contractors, and equipment service professionals use this belt as a direct replacement in blower and fan drive systems where a Section B profile is required.

This belt is suited for residential and commercial applications including air handler blower assemblies, condenser fan drives, ventilation fans, and general-purpose machinery drives. The HY-T Matchmaker style ensures dimensional consistency for matched-set or single-belt installations. The Section B cross-section fits standard B-profile sheaves and pulleys commonly found across a wide range of HVAC and light industrial equipment.

Key Features

• Section B profile with 35.0-inch outside length and 33.80-inch internal length
• Wingprene rubber-impregnated fabric construction for flex durability and oil resistance
• Wide operating temperature range: -40 degrees C minimum to 140 degrees C maximum
• HY-T Matchmaker style for consistent dimensions in single or matched-set configurations
• B32 belt designation for straightforward cross-reference and replacement identification

Compatibility

Designed as an OEM-style replacement for any drive system requiring a Section B classical V-belt with a 35.0-inch outside length and B32 designation, including standard B-profile sheaves used in residential and commercial HVAC blower and fan assemblies.

Installation Notes

Installation is typically performed by a licensed HVAC technician or mechanical contractor. Always disconnect and lock out power to the unit before removing or installing the belt. Adjust sheave alignment and belt tension according to the equipment manufacturer's specification before returning the system to service. Do not pry the belt over sheave flanges, as this can damage the belt cords and reduce service life.
