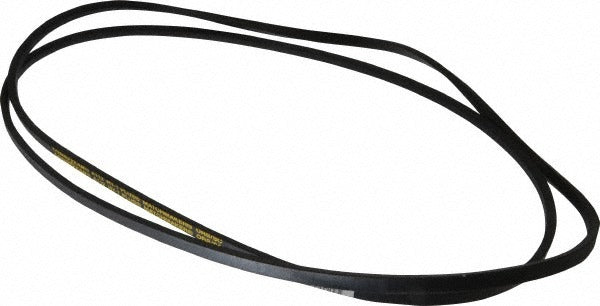

Continental Contitech 20042029 Section a V-belt A112

Product Description

The CONTINENTAL CONTITECH 20042029 is a Section A V-belt designed for power transmission in industrial and mechanical drive applications. Built from Wingprene rubber-impregnated fabric, this belt delivers reliable performance in environments where heat and oil exposure are common concerns. With a 114.2-inch outside length and an internal length of 113.30 inches, it fits standard Section A drive configurations. The HY-T Matchmaker style construction is engineered for matched-set use and consistent tension across multi-belt drive systems. Rated for operating temperatures from -40 degrees C to 140 degrees C, this belt handles demanding duty cycles without premature wear. HVAC technicians, millwrights, and mechanical contractors are the typical installers.

This belt is suited for use in residential and commercial HVAC systems, industrial fan drives, pump drives, compressors, and general-purpose belt-driven equipment. Section A V-belts are among the most widely used drive belt profiles in mechanical systems, making the 20042029 a common replacement in equipment requiring a standard A112 belt. The HY-T Matchmaker designation supports use in matched multi-belt applications where consistent belt length and tension balance are critical to drive efficiency and bearing life.

Key Features

• Section A profile with 114.2-inch outside length and 113.30-inch internal length
• Wingprene rubber-impregnated fabric construction for heat and oil resistance
• Operating temperature range: -40 degrees C to 140 degrees C
• HY-T Matchmaker style supports matched-set multi-belt drive applications
• Meets DIN 2215 and DIN 7753 standards
• Belt number A112 for direct cross-reference identification

Compatibility

Designed as an OEM-style replacement for Section A V-belt drive systems requiring an A112 belt with 114.2-inch outside length. Confirm sheave groove profile and center distance specifications before installation.

Installation Notes

V-belt installation should be performed by a qualified technician. Always de-energize and lock out the drive system before removing or installing belts. Never force a belt over a sheave — adjust center distance to allow belt seating, then tension to the manufacturer specification for the driven equipment. Inspect sheave grooves for wear before installing a new belt to prevent premature failure.
