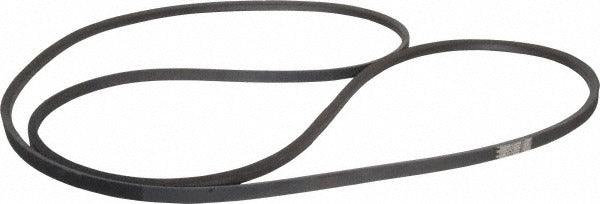

Continental Contitech 20042024 V-belt Section a A100 102.2 in

Product Description

The CONTINENTAL CONTITECH 20042024 is a Section A V-belt designed for power transmission in HVAC, industrial, and mechanical drive applications. Manufactured under the HY-T Matchmaker style, this belt features Wingprene rubber-impregnated fabric construction that delivers resistance to heat, oil, and flex fatigue. The outside length is 102.2 inches with an internal length of 101.30 inches, conforming to the A100 belt designation. It weighs 0.7 pounds and is sold as a single belt. HVAC technicians and mechanical contractors install this belt on blower assemblies, fan drives, and accessory drive systems where a standard Section A profile is required.

This belt is suited for residential and light commercial HVAC equipment, as well as general industrial drive systems that specify a Section A V-belt in the A100 size. Typical applications include air handler blower drives, condenser fan drives, shop equipment, and agricultural machinery where an A-section belt is called out in the equipment manual. The Wingprene fabric construction helps maintain belt integrity under continuous duty cycling and elevated ambient temperatures common in mechanical equipment rooms and rooftop installations.

Key Features

• Section A V-belt profile — direct replacement for A100-designated drive applications
• 102.2-inch outside length with 101.30-inch internal length for precise drive sizing
• Wingprene rubber-impregnated fabric construction for heat and oil resistance
• HY-T Matchmaker style for consistent dimensional tolerances and matched-set compatibility
• Lightweight at 0.7 pounds — suitable for single or matched-set installations

Compatibility

Designed as an OEM-style replacement for drive systems specifying a Section A V-belt in the A100 size designation. Consult the equipment drive specification plate or service manual to confirm outside length, section profile, and number of belts required before ordering.

Installation Notes

V-belt replacement should be performed by a qualified HVAC technician or mechanical contractor. Disconnect and lock out all power to the equipment before removing belt guards or accessing the drive assembly. Adjust sheave or pulley center distance to allow belt installation without forcing — never pry a belt onto a sheave. After installation, set belt tension per the equipment manufacturer specification and re-check tension after the first few hours of operation as new belts will seat and elongate slightly.
