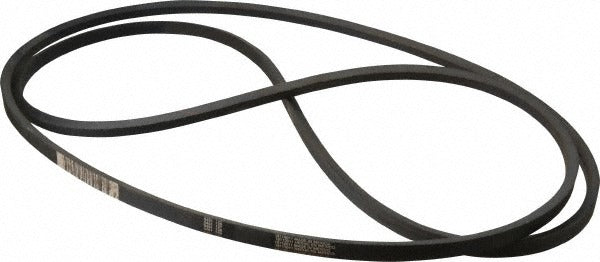

Continental Contitech 20042023 V-belt Section a A98 100.2in

Product Description

The CONTINENTAL CONTITECH 20042023 is a Section A V-belt designed for industrial and commercial power transmission applications. Constructed from Wingprene rubber-impregnated fabric, this belt delivers reliable resistance to heat and oil, making it suitable for demanding drive environments. It carries belt designation A98 and measures 100.2 inches in outside length with a 99.30-inch internal length. The HY-T Matchmaker style profile ensures consistent performance in matched-set drive configurations. HVAC technicians, industrial mechanics, and equipment service professionals install this belt on blower drives, fan assemblies, and general machinery requiring Section A belt geometry.

This belt fits applications where a standard Section A profile is specified, including rooftop units, air handlers, centrifugal fans, and light industrial equipment. The A98 belt designation makes it a direct fit for drives engineered around that belt number. Its wide temperature range, from -40 degrees C to 140 degrees C, supports both cold-start and high-heat operating conditions found in mechanical rooms, rooftop installations, and industrial facilities. Always verify the existing belt number before ordering to confirm proper fit.

Key Features

• Section A profile, 100.2-inch outside length and 99.30-inch internal length for precise drive fit
• Wingprene rubber-impregnated fabric construction for durability in tough drive environments
• Heat resistant and oil resistant for extended service life in demanding conditions
• Operating temperature range of -40 degrees C to 140 degrees C
• HY-T Matchmaker style compatible with matched-set multi-belt drive systems
• Meets DIN 2215 and DIN 7753 standards

Compatibility

Designed as an OEM-style replacement V-belt for drives specifying an A98 Section A belt. Verify the existing belt designation and sheave groove profile before installation to confirm compatibility.

Installation Notes

Installation is typically performed by HVAC technicians or industrial mechanics. De-energize and lock out all power to the drive system before removing the old belt or installing the new one. Adjust sheave center distance to allow belt installation without forcing it over sheave flanges, then re-tension according to the equipment manufacturer's deflection specification. Inspect sheave grooves for wear before installing a new belt.
