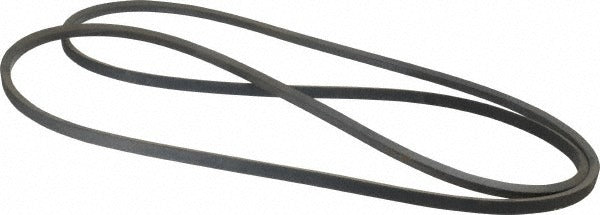

Continental Contitech 20042021 V-belt Section a A96 98.2in

Product Description

The CONTINENTAL CONTITECH 20042021 is a Section A classical V-belt designed for industrial and commercial power transmission applications. Built from Wingprene rubber-impregnated fabric, this belt delivers reliable resistance to heat and oil, making it suited for demanding drive systems. It carries a belt number designation of A96, with an outside length of 98.2 inches and an internal length of 97.30 inches. The HY-T Matchmaker style construction is engineered for matched-belt drive setups. Installation is typically performed by maintenance technicians and millwrights working on HVAC blower assemblies, pumps, compressors, and general industrial machinery.

This V-belt is used in residential and commercial HVAC systems, refrigeration equipment, agricultural machinery, and general industrial drive applications where a Section A belt profile is specified. It is appropriate for any drive system calling for an A96-designation belt. The Wingprene compound provides durability across a wide operating temperature range, from -40 degrees C to 140 degrees C, making it functional in both cold storage and high-heat environments.

Key Features

• Section A V-belt profile with 98.2-inch outside length and 97.30-inch internal length
• Wingprene rubber-impregnated fabric construction for heat and oil resistance
• Operating temperature range: -40 degrees C minimum to 140 degrees C maximum
• HY-T Matchmaker style for use in matched-belt multi-groove drive systems
• Meets DIN 2215 and DIN 7753 standards
• Belt designation A96 for direct cross-reference to standard sizing charts

Compatibility

Designed as a standard Section A replacement V-belt for drive systems specifying an A96 belt designation across HVAC, refrigeration, and general industrial power transmission applications.

Installation Notes

Installation should be performed by a qualified technician. Always de-energize and lock out the drive system before removing or installing belts. Adjust sheave spacing to allow belt installation without forcing the belt over the pulley groove, then tension according to the drive system manufacturer's specifications. Inspect sheave grooves for wear before installing a new belt.
