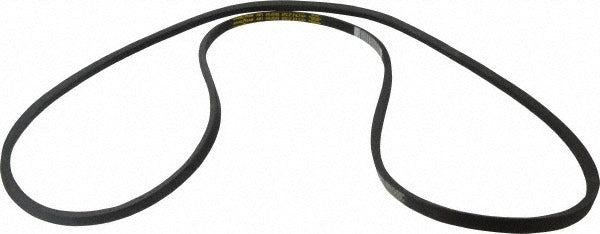

Continental Contitech 20042006 V-belt Section a 83.2 in

Product Description

The CONTINENTAL CONTITECH 20042006 is a Section A V-belt designed for power transmission in industrial and commercial drive systems. Built from Wingprene rubber-impregnated fabric, this belt delivers resistance to heat and oil — two of the most common failure conditions in demanding drive applications. It carries an outside length of 83.2 inches and an internal length of 82.30 inches, matching the standard A81 belt designation. Licensed HVAC technicians, mechanical contractors, and industrial maintenance professionals install this belt on fan, blower, and motor drive systems where a Section A cross-section is specified.

This belt fits drive systems that call for a standard Section A V-belt with an 83.2-inch outside length. The A81 designation makes it a direct match for equipment specifying that belt number. It is suited for residential and commercial HVAC blower assemblies, refrigeration condensing unit fan drives, pump drives, and general industrial machinery. The HY-T Matchmaker style profile allows it to run in standard A-section sheaves. It performs reliably across a working temperature range of -40 degrees C to 140 degrees C, making it appropriate for both cold-environment and high-heat applications.

Key Features

• Wingprene rubber-impregnated fabric construction for heat and oil resistance
• Section A cross-section with 83.2-inch outside length and 82.30-inch internal length
• A81 belt designation for direct cross-reference and replacement identification
• HY-T Matchmaker style profile fits standard A-section sheaves
• Operating range from -40 degrees C to 140 degrees C
• Meets DIN 2215 and DIN 7753 standards

Compatibility

Designed as a direct replacement for any drive system specifying a Section A V-belt with the A81 belt number or an 83.2-inch outside length in a standard A-section sheave configuration.

Installation Notes

Installation is typically performed by HVAC technicians, mechanical contractors, or qualified maintenance personnel. Always de-energize and lock out the drive system before removing or installing any belt. Adjust sheave spacing to allow belt seating without forcing, then tension to the drive manufacturer's specification using a belt tension gauge. Never use tools to pry the belt over a sheave flange, as this can damage the belt cords and shorten service life.
