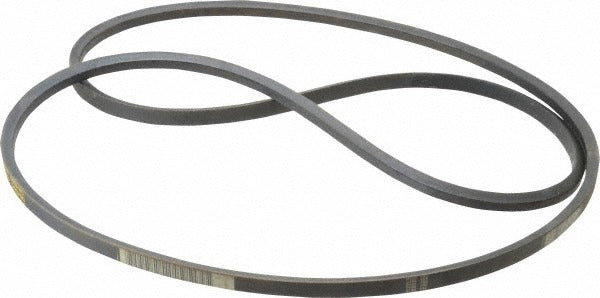

Continental Contitech 20042001 V-belt Section a A76 78.2in

Product Description

The CONTINENTAL CONTITECH 20042001 is a Section A V-belt designed for power transmission applications in HVAC, industrial, and mechanical drive systems. Constructed from Wingprene rubber-impregnated fabric, this belt delivers reliable heat resistance and oil resistance across a wide operating temperature range of -40 degrees C to 140 degrees C. With an outside length of 78.2 inches and an internal length of 77.30 inches, it conforms to DIN 2215 and DIN 7753 standards. HVAC technicians and mechanical contractors install this belt as part of blower, fan, and pump drive assemblies where Section A geometry is specified.

This belt is suited for residential and light commercial HVAC systems, industrial fan drives, and general power transmission setups that call for a Section A profile. The HY-T Matchmaker style designation indicates a high-capacity, matchable belt design commonly used in multi-belt drive configurations where consistent tension across matched sets is required. It fits applications specifying belt number A76.

Key Features

• Section A V-belt profile with 78.2 inch outside length and 77.30 inch internal length
• Wingprene rubber-impregnated fabric construction for durability and flexibility
• Heat resistant and oil resistant for demanding drive environments
• Operating temperature range: -40 degrees C to 140 degrees C
• Meets DIN 2215 and DIN 7753 standards
• HY-T Matchmaker style for use in matched multi-belt drive sets

Compatibility

Designed as an OEM-style replacement for Section A V-belt applications specifying belt number A76 with a 78.2 inch outside length.

Installation Notes

Installation should be performed by a qualified HVAC technician or mechanical contractor. Disconnect and lock out all power to the drive system before removing or installing the belt. Do not pry or force the belt over sheave flanges — relieve drive tension by adjusting the motor mount or tensioner before seating the belt. Verify sheave alignment and tension according to the equipment manufacturer's specifications after installation.
