Continental Contitech 20041995 V-belt Section a A70 72.2 in

Product Description

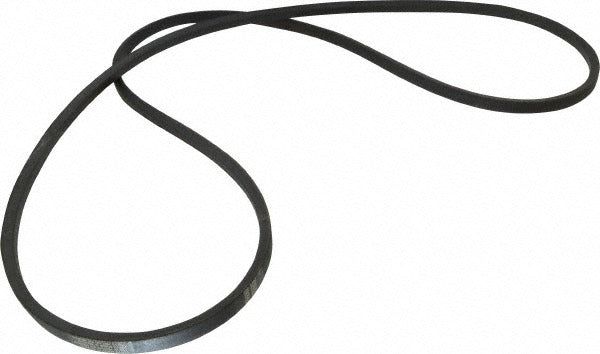

The CONTINENTAL CONTITECH 20041995 is a Section A V-belt designed for power transmission in industrial and HVAC drive systems. Built from Wingprene rubber-impregnated fabric, this belt delivers reliable performance across a wide temperature range, from -40 degrees C to 140 degrees C, making it suitable for demanding operating environments. The A70 designation indicates a belt with a 72.2-inch outside length and a 71.30-inch internal length. Licensed HVAC technicians, mechanical contractors, and industrial maintenance professionals typically install this belt in belt-driven fan, blower, and motor applications.

This V-belt fits Section A drive configurations commonly found in residential and light commercial HVAC systems, as well as general industrial equipment with matching A-section sheaves and pulleys. The HY-T Matchmaker style is engineered for use in matched-belt drives and single-belt applications alike. It is appropriate for installations requiring heat and oil resistance, particularly in equipment rooms or mechanical spaces where belt exposure to elevated temperatures or fluid contamination is a concern.

Key Features

• Wingprene rubber-impregnated fabric construction for heat and oil resistance
• Wide operating temperature range: -40 degrees C minimum to 140 degrees C maximum
• Section A profile with 72.2-inch outside length and 71.30-inch internal length
• HY-T Matchmaker style compatible with matched-set and single-belt drive applications
• Meets DIN 2215 and DIN 7753 standards

Compatibility

Designed as an OEM-style replacement for Section A V-belt drives using the A70 belt designation, compatible with A-section sheaves and pulleys in standard belt-drive configurations.

Installation Notes

Installation should be performed by a qualified HVAC technician or mechanical contractor with the drive system fully de-energized and locked out per OSHA lockout/tagout procedures. Never force the belt onto a sheave by prying; always release drive tension, seat the belt in the groove, and then adjust to proper tension using the manufacturer's drive tensioning guidelines. Inspect sheaves for wear or misalignment before installing a new belt, as damaged sheaves accelerate belt wear significantly.
