Continental Contitech 20041989 V-belt Section a A64 66.2 in

Product Description

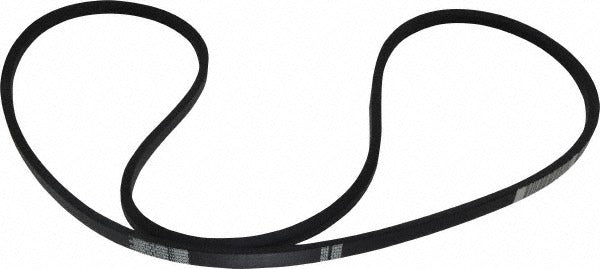

The CONTINENTAL CONTITECH 20041989 is a Section A V-belt designed for power transmission in mechanical drive systems found in HVAC equipment, industrial machinery, and commercial refrigeration. Manufactured from Wingprene rubber-impregnated fabric, this belt delivers reliable resistance to heat and oil — two common failure conditions in equipment rooms and mechanical spaces. The outside length is 66.2 inches with an internal length of 65.30 inches, and the belt is identified by the standard designation A64. It is sold individually and suited for installation by HVAC technicians, millwrights, and mechanical service professionals.

This belt is used in belt-driven applications where a Section A profile is specified, including air handling units, blower assemblies, compressor drives, and general power transmission equipment. The HY-T Matchmaker style designation indicates compatibility with standard A-section sheaves and pulleys. Operating temperature range spans from -40 degrees C to 140 degrees C, making it suitable for both cold storage environments and high-heat mechanical rooms. It meets DIN 2215 and DIN 7753 standards, which are commonly referenced in commercial and industrial drive system specifications.

Key Features

• Wingprene rubber-impregnated fabric construction provides oil and heat resistance
• Section A profile with 66.2 inch outside length and 65.30 inch internal length
• Operating range from -40 degrees C to 140 degrees C
• Meets DIN 2215 and DIN 7753 standards
• HY-T Matchmaker style for use with standard A-section sheaves
• Sold as a single belt (Pkg Qty 1)

Compatibility

Designed as an OEM-style replacement for Section A V-belt drive applications requiring an A64 belt designation and standard A-section sheave geometry.

Installation Notes

Installation should be performed by a qualified HVAC technician or mechanical service professional. Always de-energize and lock out the equipment before removing or installing drive belts. Never pry a belt onto a sheave with a tool — release tension through the motor mount adjustment before seating the belt, then re-tension to the drive manufacturer's specification. Inspect sheave grooves for wear or misalignment before installing a new belt.
