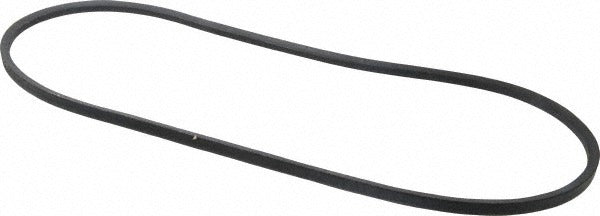

Continental Contitech 20041975 V-belt Section a 52.2in A50

Product Description

The CONTINENTAL CONTITECH 20041975 is a Section A V-belt designed for power transmission applications in HVAC, industrial, and mechanical drive systems. Constructed from Wingprene rubber-impregnated fabric, this belt delivers reliable torque transfer while resisting heat and oil exposure. It carries a 52.2-inch outside length and a 51.30-inch internal length, conforming to the A50 belt designation. The HY-T Matchmaker profile ensures consistent load sharing when used in matched-set drive configurations. Licensed HVAC technicians and mechanical service professionals install this belt on blower assemblies, fan drives, and pump systems requiring a standard Section A profile.

This belt is suited for residential and light commercial HVAC blower drives, refrigeration condenser fan drives, and general-purpose industrial power transmission systems. Its operating temperature range spans -40 degrees C to 140 degrees C, making it appropriate for demanding mechanical environments where thermal cycling and incidental oil contact are common. The A50 designation aligns with DIN 2215 and DIN 7753 standards, which are widely referenced in OEM equipment specifications for replacement belt selection.

Key Features

• Section A profile with 52.2-inch outside length and 51.30-inch internal length for A50 fitment
• Wingprene rubber-impregnated fabric construction for heat and oil resistance
• Rated operating range from -40 degrees C to 140 degrees C
• HY-T Matchmaker style supports matched-set multi-belt drive applications
• Meets DIN 2215 and DIN 7753 standards for dimensional and performance compliance

Compatibility

Designed as an OEM-style replacement for power transmission drives requiring a Section A V-belt with an A50 designation and 52.2-inch outside length per DIN 2215 and DIN 7753 standards.

Installation Notes

Belt replacement should be performed by a qualified HVAC technician or mechanical service professional with the drive system fully de-energized and locked out per OSHA lockout/tagout procedures. Inspect sheaves and pulleys for wear, misalignment, or debris before installing the new belt. Never pry or force the belt over a sheave; always release drive tension to allow proper seating. When used in a matched-set configuration, replace all belts in the drive at the same time to maintain balanced load distribution.
