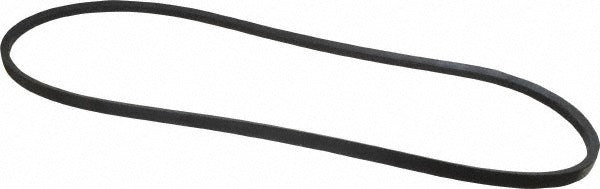

Continental Contitech 20041972 V-belt Section a A47 49.2in

Product Description

The CONTINENTAL CONTITECH 20041972 is a Section A V-belt designed for power transmission applications across HVAC, industrial, and mechanical drive systems. Built from Wingprene rubber-impregnated fabric, this belt delivers resistance to heat and oil — two of the most common causes of premature belt failure in continuous-duty environments. With an outside length of 49.2 inches and a belt number designation of A47, it meets DIN 2215 and DIN 7753 standards, making it a reliable OEM-style replacement option for properly matched sheave systems. Installation is straightforward for any technician familiar with belt-driven equipment.

This V-belt is suited for residential and light commercial HVAC applications, as well as general mechanical drive systems where a Section A belt is specified. Common install scenarios include belt-driven blower assemblies, fan drives, and pump drives. The HY-T Matchmaker style allows it to be run individually or matched with other belts in multi-belt drive configurations where consistent tension and tracking are required. Any system calling for an A47 section belt is a candidate for this part.

Key Features

• Wingprene rubber-impregnated fabric construction for durability in demanding environments
• Heat resistant — rated to 140 degrees C maximum working temperature
• Oil resistant — helps maintain belt integrity when exposed to lubricant contamination
• Cold temperature rated to -40 degrees C minimum working temperature
• Meets DIN 2215 and DIN 7753 standards
• HY-T Matchmaker style — compatible with matched multi-belt drive setups

Compatibility

Designed as an OEM-style replacement for any belt-driven system specifying a Section A, A47 V-belt with a 49.2-inch outside length and 48.30-inch internal length.

Installation Notes

V-belt replacement is typically performed by HVAC technicians or mechanical service professionals. Always de-energize and lock out the equipment before removing or installing belts. Never pry or force a belt over sheave flanges — loosen the drive motor mounting to relieve tension before removal and seating. After installation, verify belt tension and alignment per the equipment manufacturer's specifications before returning the system to service.
