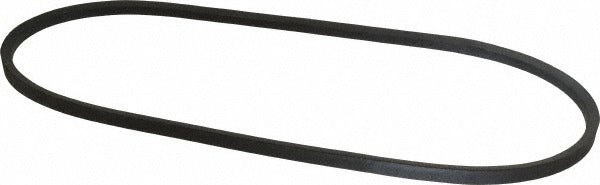

Continental Contitech 20041965 V-belt Section a A40 42.2 in

Product Description

The CONTINENTAL CONTITECH 20041965 is a Section A V-belt designed for power transmission applications in HVAC, industrial, and mechanical drive systems. Constructed from Wingprene rubber-impregnated fabric, this belt delivers reliable resistance to heat and oil — two common failure conditions in mechanical drive environments. It carries a 42.2-inch outside length and an internal length of 41.30 inches, corresponding to the standard A40 belt designation. Licensed technicians and mechanical contractors install this belt type on blower assemblies, fan drives, compressor drives, and similar rotating equipment where a classical A-section V-belt is specified.

This belt is suited for residential and light commercial HVAC blower drives, refrigeration unit fan drives, and general-purpose industrial equipment that calls for a classical A-section belt. The HY-T Matchmaker profile is engineered for matched-set and single-belt applications on standard A-section sheaves. It performs across a wide temperature range, rated from -40 degrees C to 140 degrees C, making it appropriate for both cold-environment and high-heat mechanical drive installations.

Key Features

• Wingprene rubber-impregnated fabric construction for durability in oily and high-heat environments
• Heat resistant and oil resistant — rated up to 140 degrees C maximum working temperature
• Cold-weather capable — rated down to -40 degrees C minimum working temperature
• A40 designation with 42.2-inch outside length and 41.30-inch internal length
• HY-T Matchmaker style for use in matched-set or single-belt drive configurations
• Meets DIN 2215 and DIN 7753 standards

Compatibility

Designed as a direct replacement for standard Section A, A40 classical V-belt applications on A-section sheaves and pulleys. Consult the original equipment drive specifications to confirm belt section and outside length before installation.

Installation Notes

V-belt replacement is typically performed by HVAC technicians, refrigeration mechanics, or mechanical contractors. Always de-energize and lock out the equipment before removing or installing a drive belt. Adjust sheave center distance to allow belt seating without forcing the belt over the sheave flanges, then tension according to the equipment manufacturer's deflection specification. Inspect sheave grooves for wear or misalignment before installing a new belt.
