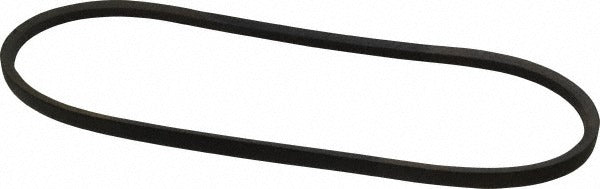

Continental Contitech 20041960 Section a V-belt A35 37.2in

Product Description

The CONTINENTAL CONTITECH 20041960 is a Section A V-belt designed for power transmission applications in industrial, HVAC, and mechanical drive systems. Built from Wingprene rubber-impregnated fabric, this belt delivers resistance to heat and oil, making it suitable for demanding service environments. It carries belt number A35, with an outside length of 37.2 inches and an internal length of 36.30 inches. Operating temperature range spans from -40 degrees C to 140 degrees C, allowing use across a wide range of ambient and process conditions. Licensed HVAC technicians, mechanical contractors, and maintenance professionals install this belt as part of routine drive system service.

This Section A V-belt is appropriate for use in belt-driven blower assemblies, fan drives, compressor drives, and general mechanical power transmission setups found in residential and light commercial HVAC equipment as well as industrial machinery. The HY-T Matchmaker style is engineered for matched-set applications where drive balance and consistent belt length tolerance are required. It is sold individually and is compatible with standard Section A sheaves and pulleys.

Key Features

• Wingprene rubber-impregnated fabric construction resists heat and oil exposure
• Section A profile fits standard A-section sheaves and pulley grooves
• 37.2 inch outside length with 36.30 inch internal length for precise drive sizing
• Working temperature range of -40 degrees C to 140 degrees C
• HY-T Matchmaker style supports matched-set drive applications
• Meets DIN 2215 and DIN 7753 standards

Compatibility

Designed as an OEM-style replacement Section A V-belt for belt-driven HVAC blower, fan, and compressor drives using standard A-section sheaves. Belt number A35 cross-references to standard industry A-section belt sizing.

Installation Notes

Installation should be performed by a qualified HVAC technician or mechanical contractor. De-energize and lock out the equipment before removing the old belt or installing the replacement. Never force a belt onto a sheave with a pry bar, as this can damage belt cords and reduce service life. After installation, verify proper belt tension and sheave alignment per the equipment manufacturer's specifications before returning the system to service.
