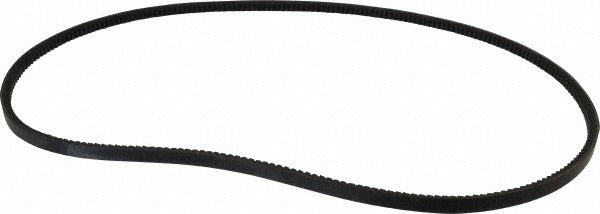

Continental Contitech 20039495 AX56 Cogged V-belt 58.2 in

Product Description

The CONTINENTAL CONTITECH 20039495 is an AX56 Torque-Flex cogged V-belt designed for demanding drive applications in HVAC, industrial, and mechanical power-transmission systems. Built with Fiber-Reinforced Vytracord construction, this belt delivers reliable torque transfer with reduced bending resistance compared to standard wrapped belts. The cogged profile increases flexibility and surface grip while dissipating heat more effectively during continuous operation. The AX section designation indicates a 0.5-inch top width profile, and the belt measures 58.2 inches outside length with a 57.30-inch internal length. Oil-resistant compounding protects the belt in environments where fluid contamination is a factor.

This belt is suited for residential and light commercial HVAC blower drives, agricultural equipment, compressors, fans, and general mechanical power-transmission setups that use AX-section sheaves. The Torque-Flex cogged design makes it compatible with smaller-diameter pulleys where a standard wrapped belt would experience excessive deflection or slippage. Licensed HVAC technicians, millwrights, and mechanical contractors install this belt as a direct replacement in AX56 drive configurations across a wide range of motor and blower assemblies.

Key Features

• Cogged Torque-Flex profile reduces bending stress and improves flex life on small-diameter sheaves
• Fiber-Reinforced Vytracord tensile cords provide high load-carrying capacity with minimal stretch
• Oil-resistant compound construction resists degradation from fluid contamination in the drive bay
• Wide operating temperature range: -40 degrees F to 140 degrees F (-40 C to 60 C)
• AX section with 58.2-inch outside length and 57.30-inch internal length for precise fitment
• Single-belt packaging suitable for one-for-one replacement service calls

Compatibility

Designed as a direct OEM-style replacement for AX56 cogged V-belt drive applications using standard AX-section sheaves and pulleys in HVAC blower, fan, and light industrial power-transmission systems.

Installation Notes

Power down and lock out the equipment before removing the worn belt. Loosen the motor mount or tensioning bracket to relieve drive tension before seating the new belt — never pry or roll a cogged belt over a sheave under tension, as this can damage the tensile cords. After installation, adjust tension per the equipment manufacturer's deflection specification and re-check tension after the first few hours of operation. Inspect sheave grooves for wear or misalignment before installing the replacement belt.
