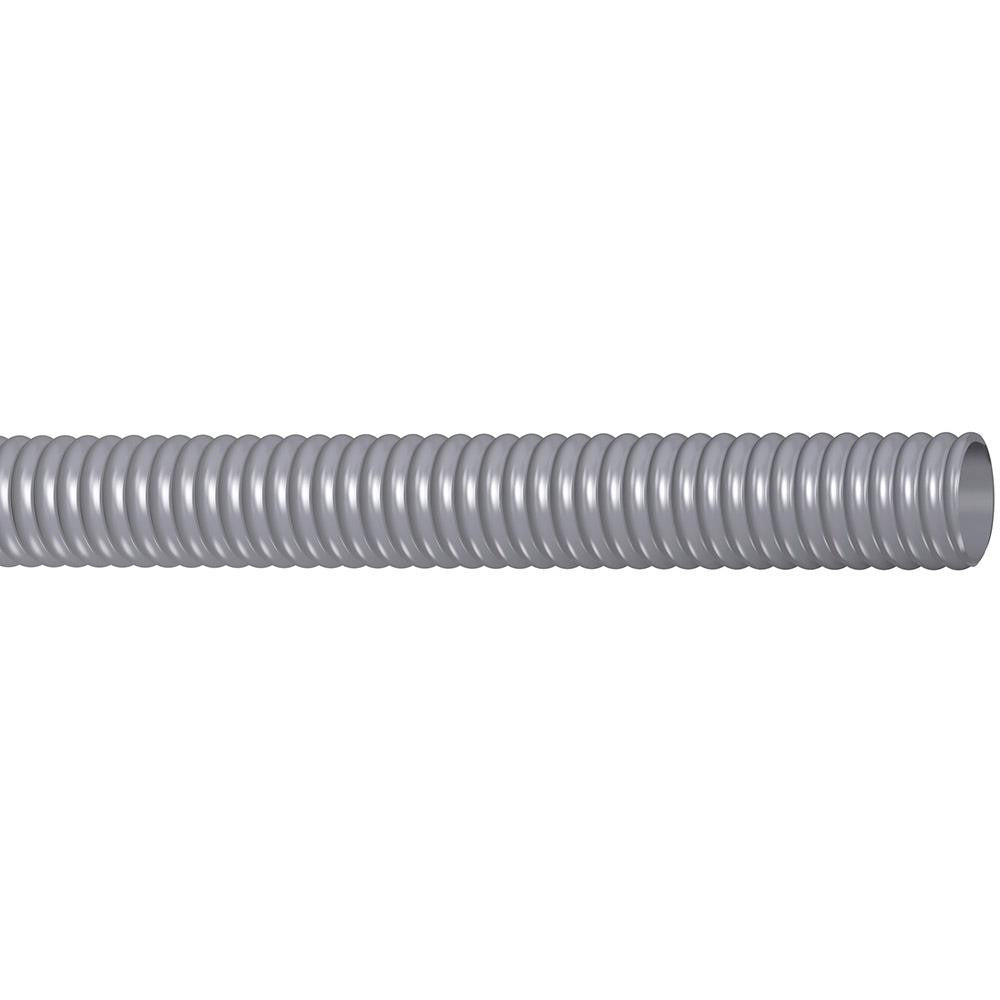

Continental Contitech 20013092 Pvc Duct Hose 1.5 in Id

Product Description

The CONTINENTAL CONTITECH 20013092 is a flexible polyvinylchloride (PVC) duct hose engineered for low-pressure air movement and extraction applications in industrial and commercial environments. With a 1.5-inch inside diameter and an outside diameter of 1.76 inches, this hose handles a maximum working pressure of 34 psi and carries a vacuum rating of 29 Hg. The temperature range spans 15 degrees F to 150 degrees F, making it suitable for year-round service in most indoor settings. It is sold in 1-foot increments with a 25-foot minimum cut length from a 100-foot coil. Installers in HVAC, dust collection, and light industrial ventilation regularly specify this type of hose for flexible duct runs.

This duct hose is used in ventilation and extraction systems designed to move airborne pollutants, dust, fumes, and odors away from work areas. It suits residential and light commercial shop ventilation, portable fume extractors, dust collectors, and similar equipment where a flexible, routable hose connection is needed between a blower or vacuum source and a collection point or exhaust. The white PVC construction keeps the hose lightweight and easy to route through tight spaces without heavy support structures.

Key Features

• 1.5-inch inside diameter with 1.76-inch outside diameter for consistent airflow and snug fitting connections
• 34 psi maximum working pressure supports moderate positive-pressure duct runs
• 29 Hg vacuum rating suitable for dust and fume extraction duty
• Operating range of 15 degrees F to 150 degrees F covers most indoor ventilation environments
• Flexible PVC construction allows tight routing with a 3.8-inch bend radius
• Sold in 1-foot increments from a 100-foot coil with a 25-foot minimum cut length

Compatibility

Designed for use in systems handling airborne pollutants, dust, fumes, and odors. Typical applications include portable dust collectors, fume extractors, and flexible ventilation duct runs where a 1.5-inch ID PVC hose meets system pressure and temperature requirements.

Installation Notes

Installation is typically performed by HVAC technicians, industrial ventilation contractors, or qualified maintenance personnel. Shut down and de-energize any connected blower or vacuum equipment before making or breaking hose connections. Secure each end with an appropriate clamp or fitting rated for the hose outside diameter to prevent blowoff at operating pressure. Verify that the installed bend radius does not fall below 3.8 inches to avoid kinking and flow restriction.
