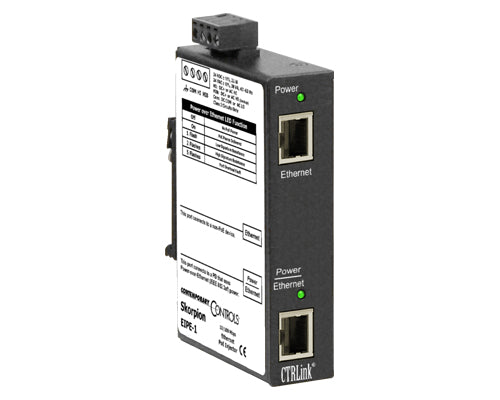

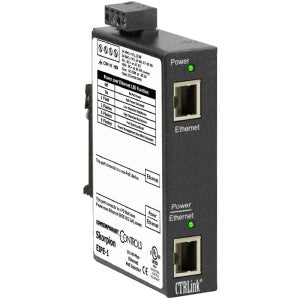

Contemporary Controls EIPE-1 Skorpion PoE Mid-Span Injector 15.4W

Product Description

The CONTEMPORARY CONTROLS EIPE-1 Skorpion PoE Injector adds power to data in Ethernet wiring, powering devices like surveillance and card access machines via standard Ethernet cabling. It operates from 24 VAC/VDC, generating 48 VDC PoE power for the Powered Device (PD), providing isolated 15.4 W power output. It injects 48 VDC into the Ethernet cable for both power and data.

• IEEE 802.af compliant
• Enhanced EMC compliance
• Isolated 15.4 W power output

Product Highlights

This PoE injector supports the 802.3af protocol, features a rugged metal enclosure, and is DIN-rail mountable. It eliminates the need for a 48 VDC power supply.

Product Information

Standard Information

• Brand: CONTEMPORARY CONTROLS
• Manufacturer Part Number: EIPE-1
• Country of Origin: USA

Technical Specifications

• Supply Voltage: 24 VAC ±10% @ 4 VA, 24 VDC @ 167 mA
• Communication: Ethernet communications IEEE 802.3 10/100 Mbps data rate 10 BASE-T, 100 BASE-TX physical layer 100 m (max) CAT 5 cable length
• LED Indication: Ethernet Green = 100 Mbps Yellow = 10 Mbps Flash = activity
• Operating Temperature: 32° to 140°F (0° to 60°C)
• Operating Humidity: 10 to 95% non-condensing
• Approvals: CE, UL File #E225652, RoHs
• MPN: EIPE-1
• Brand: Contemporary Controls
