Construction Solutions DBX1000-6 Plastic Dryer Vent Box 6 in. Replacement MPN

Product Description

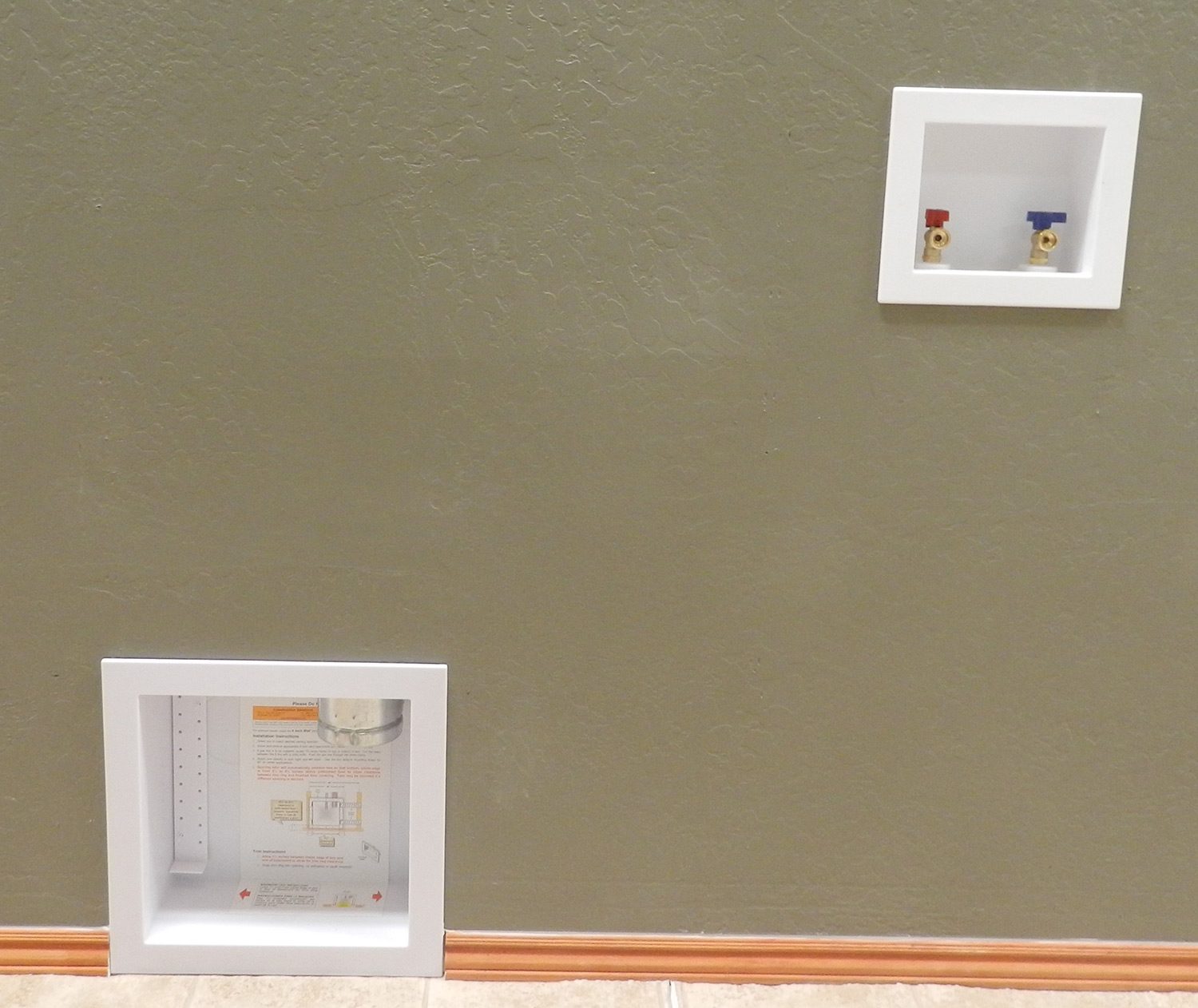

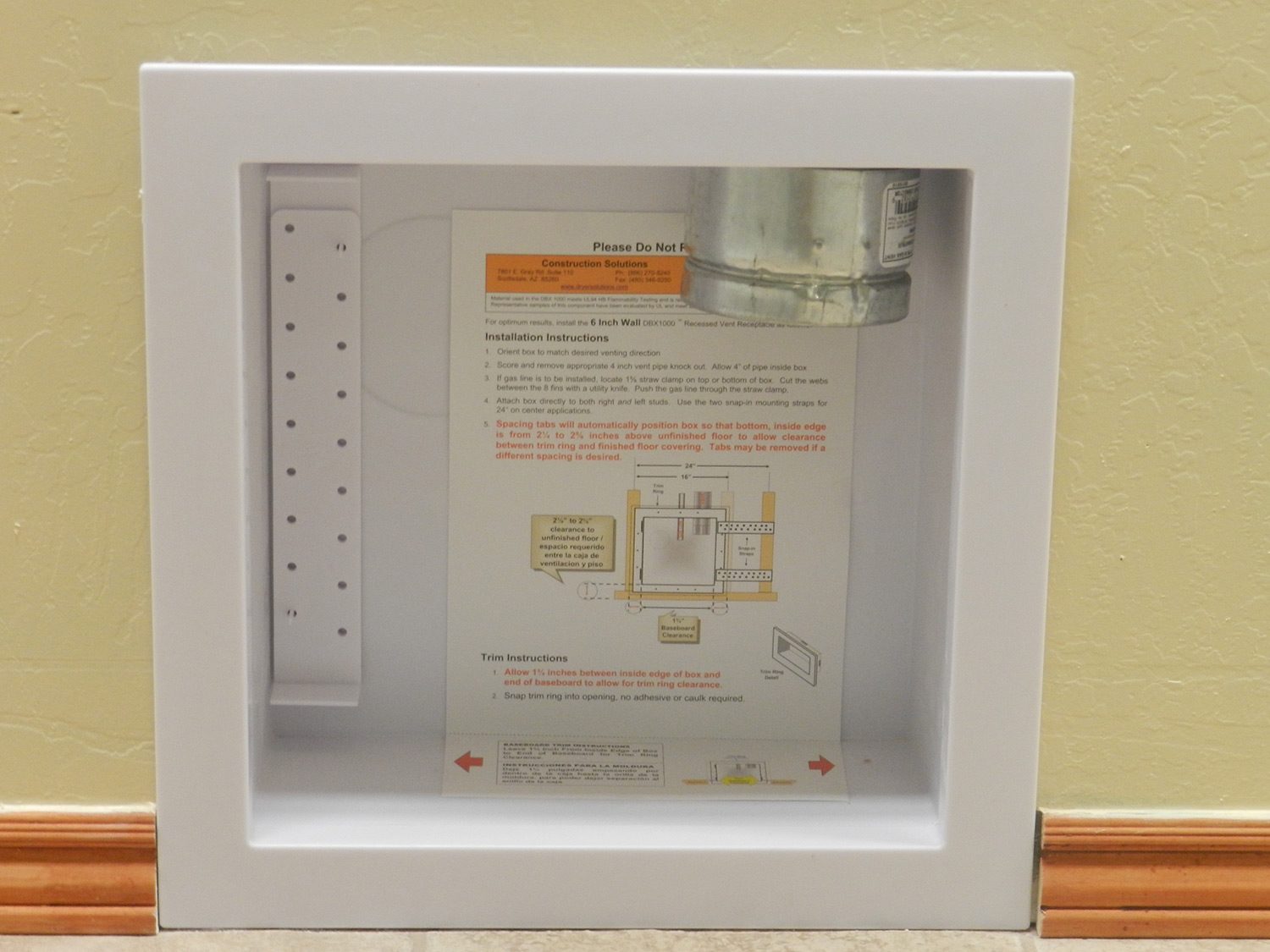

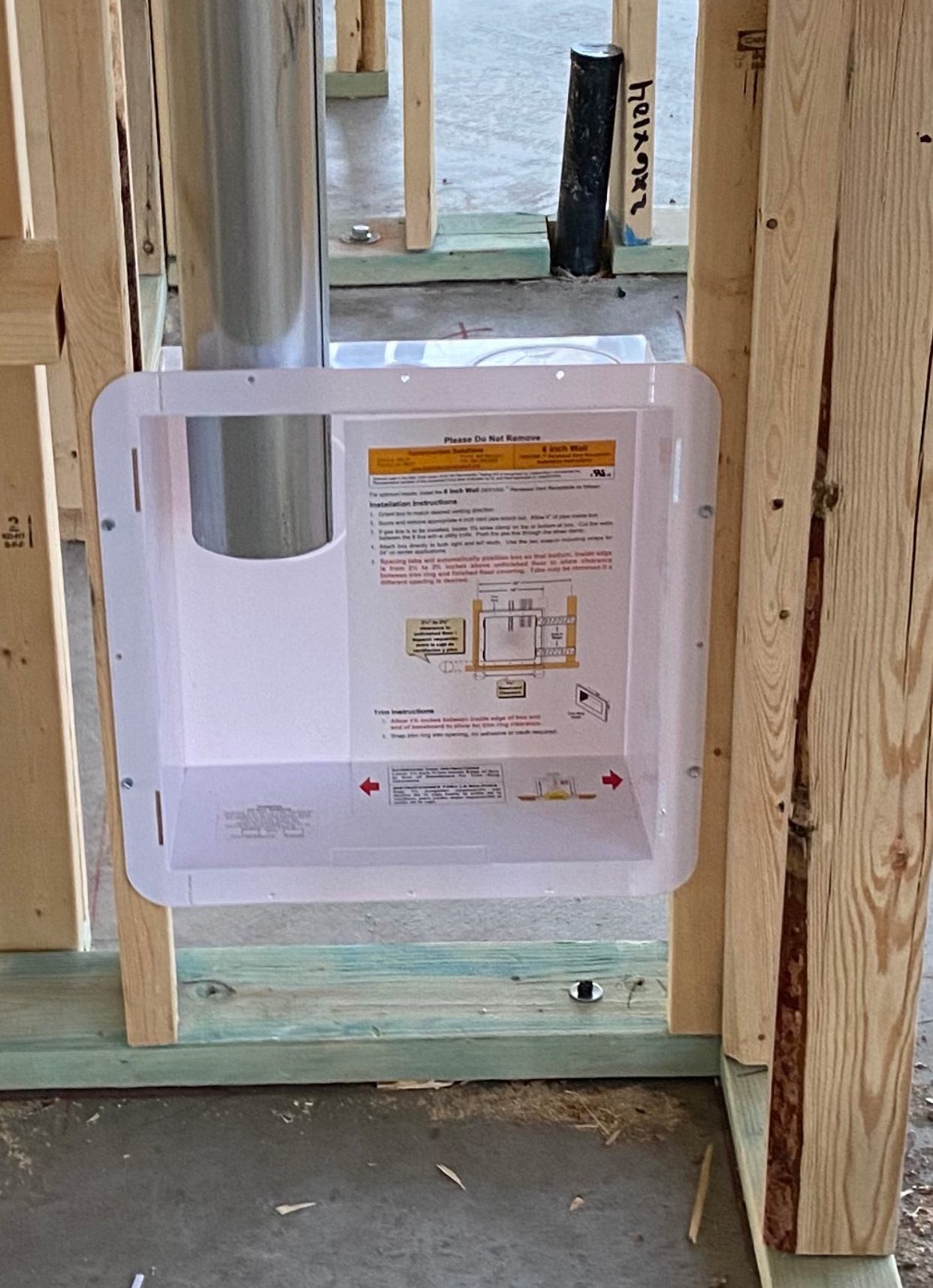

The Construction Solutions DBX1000-6 is a six-inch plastic dryer vent box specifically designed for installation in two by six-inch walls. This durable unit is made from high-impact polystyrene and provides flexibility with three four-inch pipe knockouts, allowing both direct, down, and up venting configurations. The installation process is straightforward, as it includes brackets and straps for mounting on studs spaced up to twenty-four inches apart.

• Constructed from high-impact polystyrene for durability.
• Includes a snap-on trim ring for easy drywall fitting.
• Compliant with the 2015 IMC Building Code Requirement IMC 504.8.5.

Product Highlights

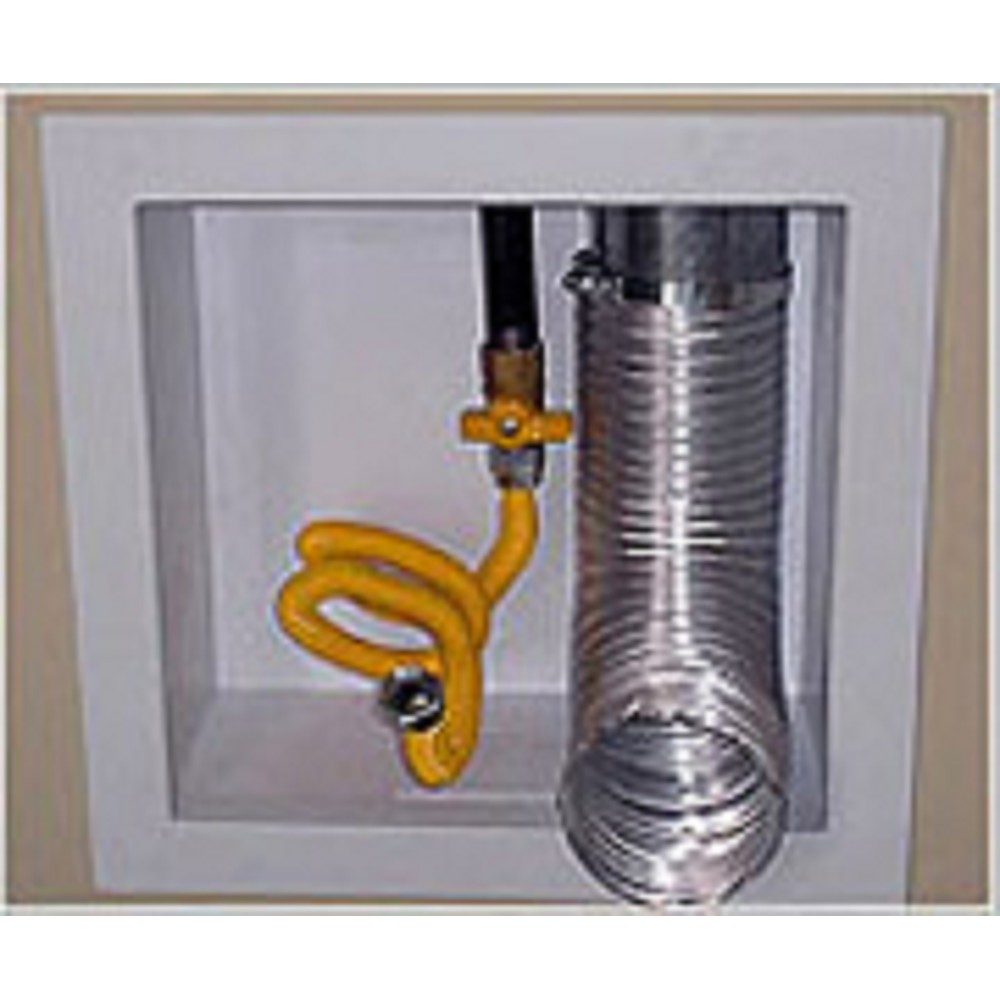

This vent box includes top and bottom clamps for gas pipe and conforms to multiple safety standards. It is also white, designed to match common laundry room installations.

Product Information

Standard Information

• Color/Finish: White
• Material: High Impact Polystyrene

Technical Specifications

• Height: Sixteen and a half inches
• Width: Sixteen and a half inches
• Weight: One pound
• Hole Size: Four inches
• Application: For two by six-inch wall
• Catalog Number: DBX1000-6
• Trim Ring Height: Seventeen and one-eighth inches
• Trim Ring Width: Seventeen and one-eighth inches
