Connecticut Electric UBIZ230 Thick Replacement Circuit Breaker 30 A 120/240 VAC

Product Description

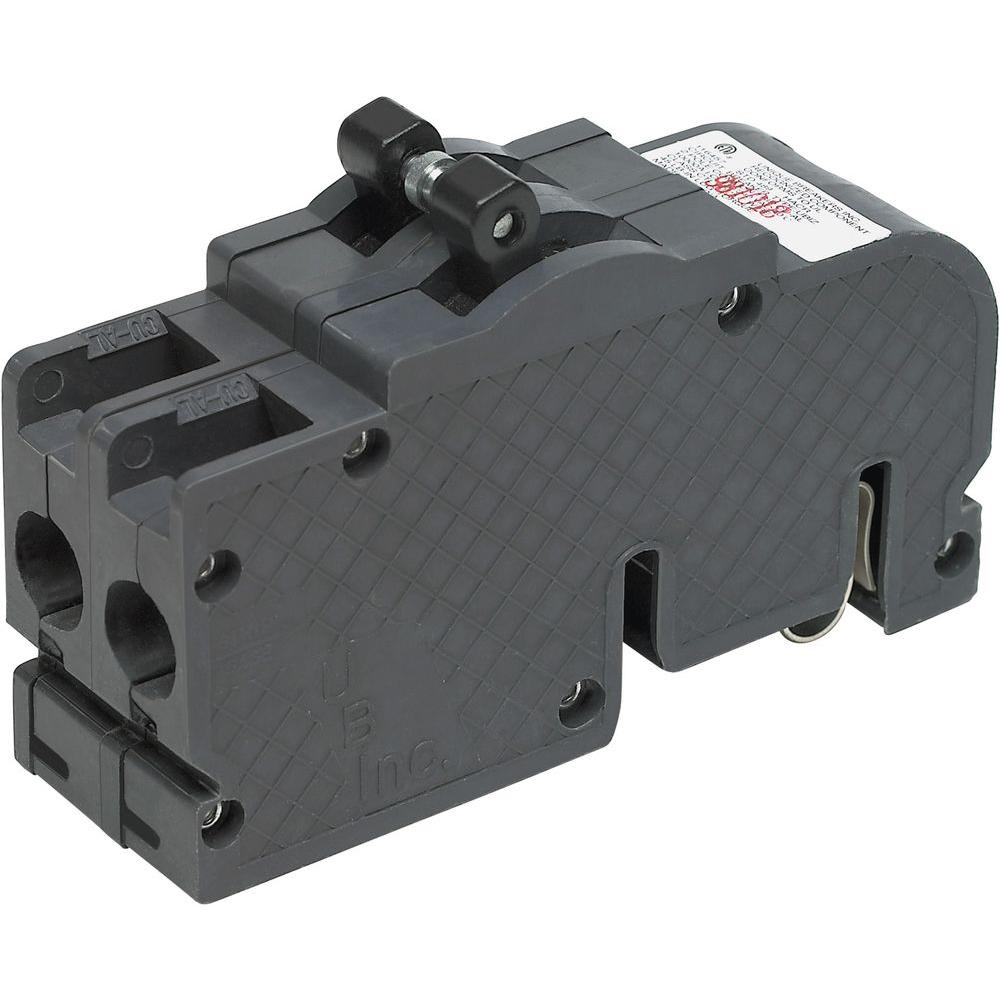

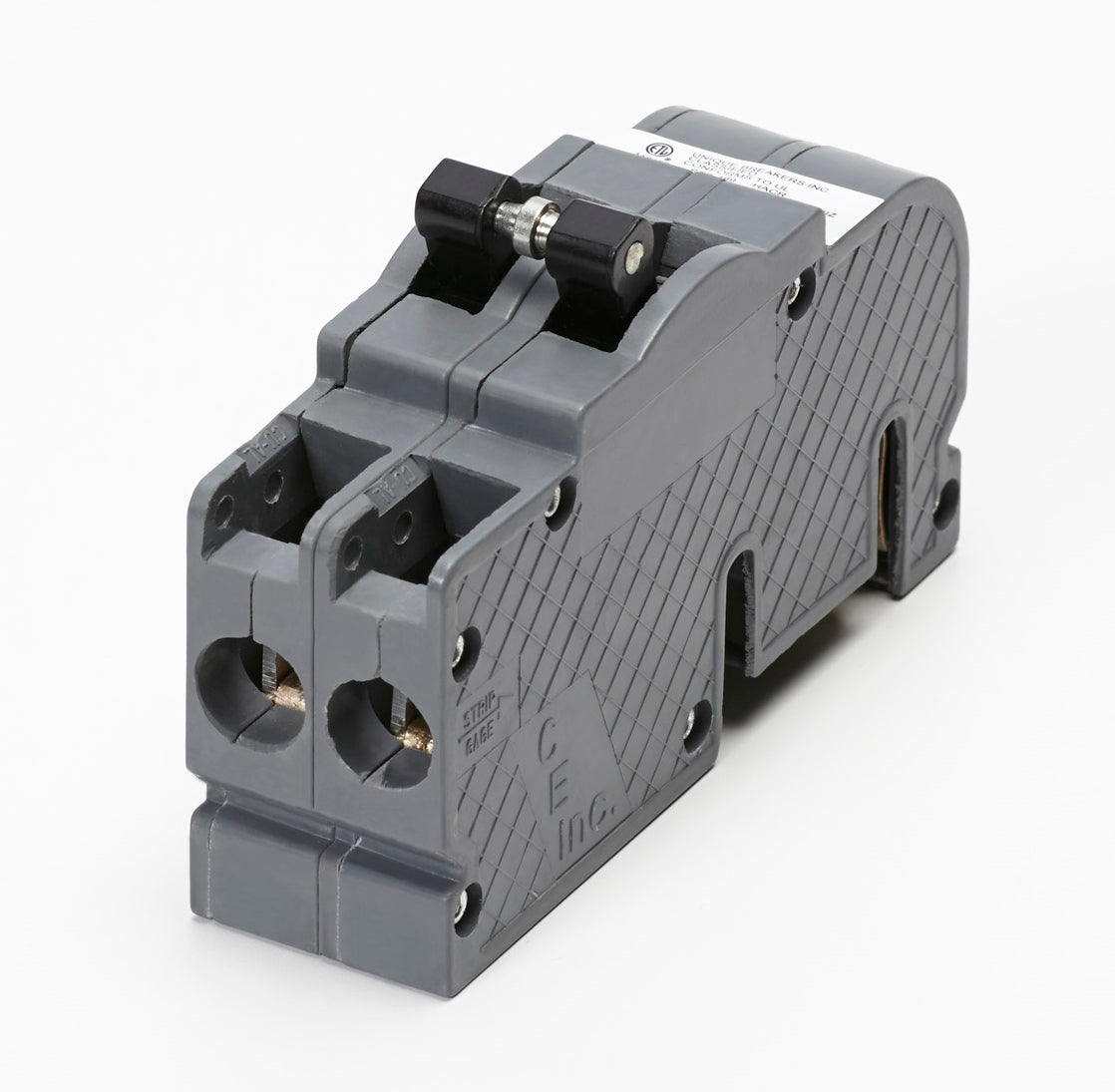

The Connecticut Electric UBIZ230 is a replacement circuit breaker designed for use in Zinsco plug-in load centers. This thermal/magnetic trip circuit breaker operates at 120/240 VAC and has an amperage rating of thirty A. It features push-on connections and accommodates wire sizes from fourteen to six AWG. The compact design has dimensions of four point eighty-one inches in length, one point five inches in width, and two point fifty-three inches in height, making it suitable for tight spaces.

• Type QC HACR rated thick
• Two poles for enhanced circuit protection
• Includes thermal magnetic trip mechanism

Product Highlights

This circuit breaker is ideal for residential and commercial applications, providing reliable protection against overloads and short circuits.

Product Information

Standard Information

• Manufacturer: Connecticut Electric
• UPC: 09492503042

Technical Specifications

• MPN: UBIZ230
• Amperage Rating: 30 A
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Frequency Rating: 50/60 Hz
• Material: DMC
• Temperature Rating: 40 deg C
• Connection Type: Push-On
• Standards/Approvals: ETL Listed, CE Certified, UL 489
