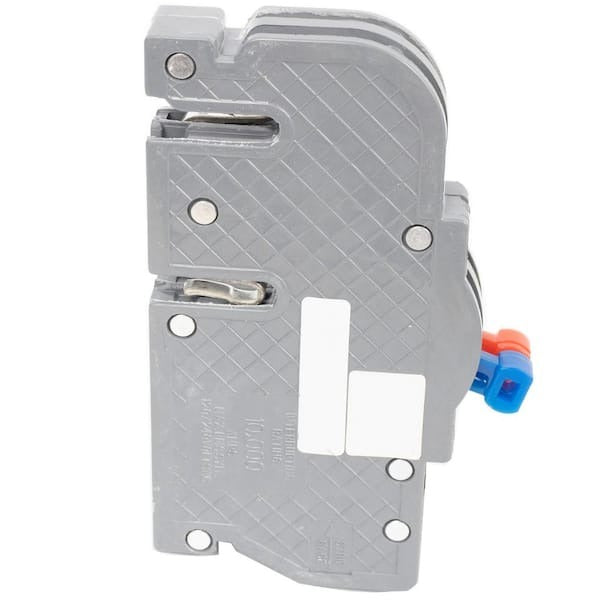

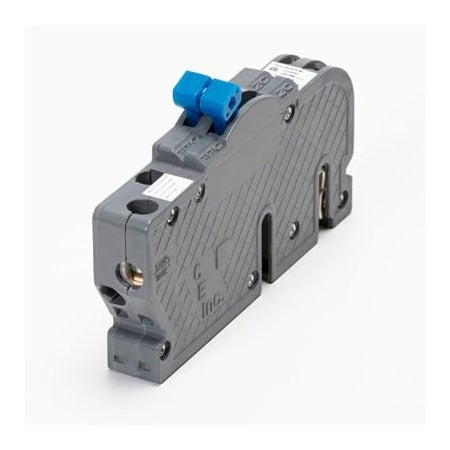

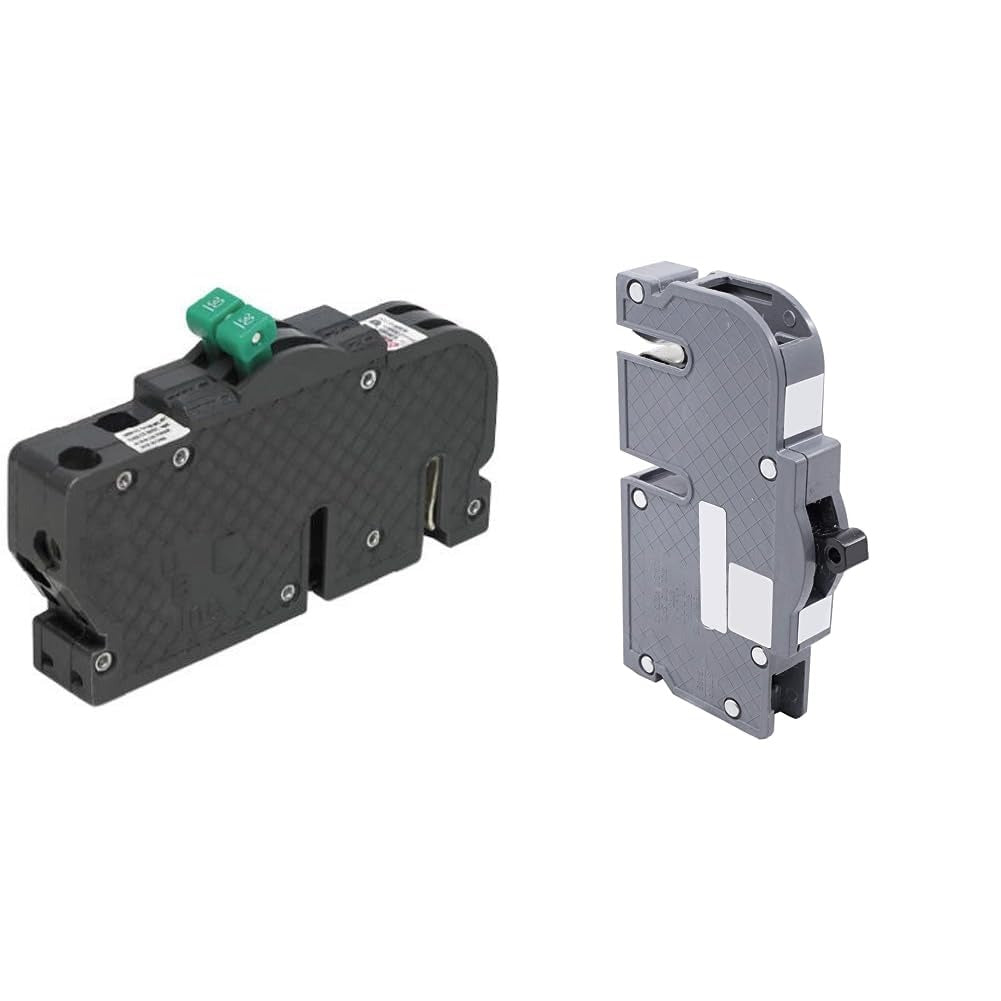

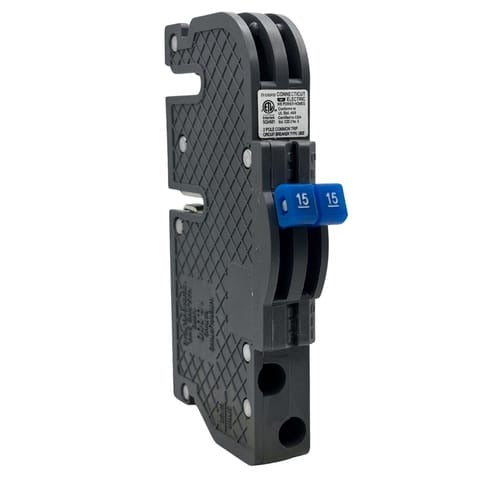

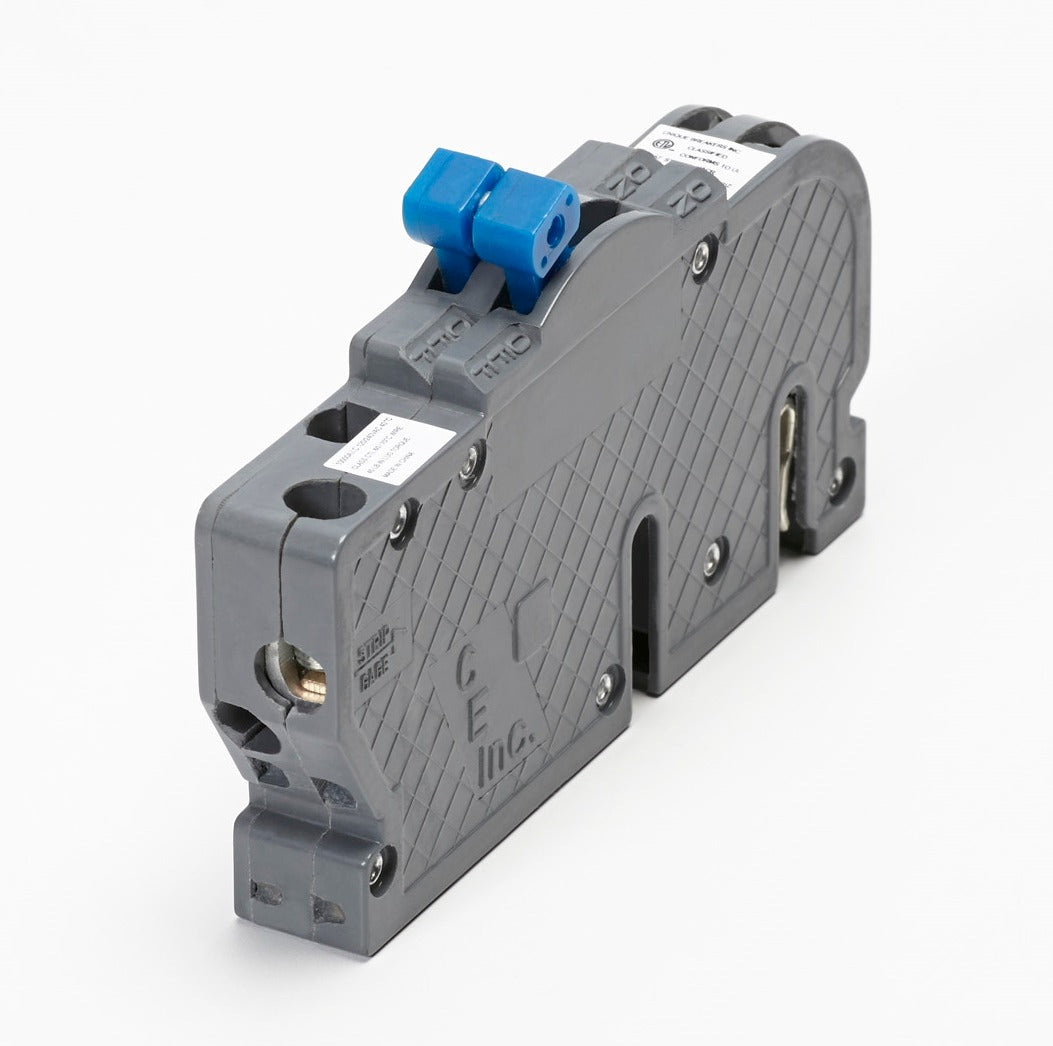

Connecticut Electric UBIZ0215 Type RC HACR Thin Replacement Circuit Breaker 15 A (2-Pole) RC3815

Product Description

The Connecticut Electric UBIZ0215 is a two-pole thin-series replacement circuit breaker rated 15 A at 120/240 VAC for Zinsco load centers that accept RC-style breakers. It uses a thermal-magnetic common-trip mechanism with a 10,000 AIC interrupting rating and HACR/SWD listings. The plug-in, push-on breaker accepts 14–8 AWG conductors, measures 4.81 x 0.75 x 2.53 inches (3/4-inch body), and is ETL listed to UL 489 with a 40°C temperature rating.

• 15 A, 2-pole thin-series plug-in breaker for 120/240 VAC Zinsco RC panels
• Thermal-magnetic common trip with 10,000 AIC interrupting rating; HACR and SWD rated; ETL listed to UL 489
• Push-on connection and handle actuator; accepts 14–8 AWG conductors; frequency 50/60 Hz

Product Highlights

Thin-series 2-pole 15 A replacement for Zinsco RC3815 with 10,000 AIC and ETL listing

Product Information

Standard Information

• Brand: CONNECTICUT ELECTRIC
• Manufacturer Part Number: UBIZ0215
• Country of Origin: China
