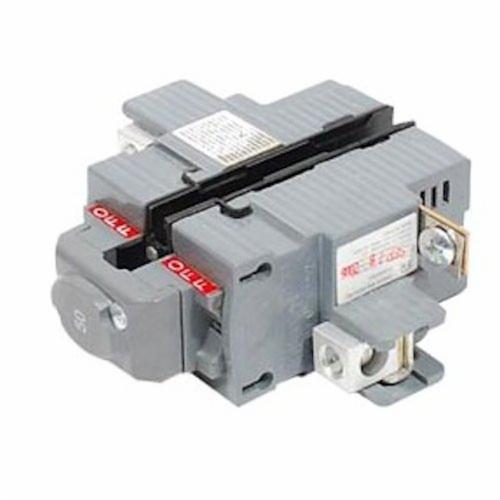

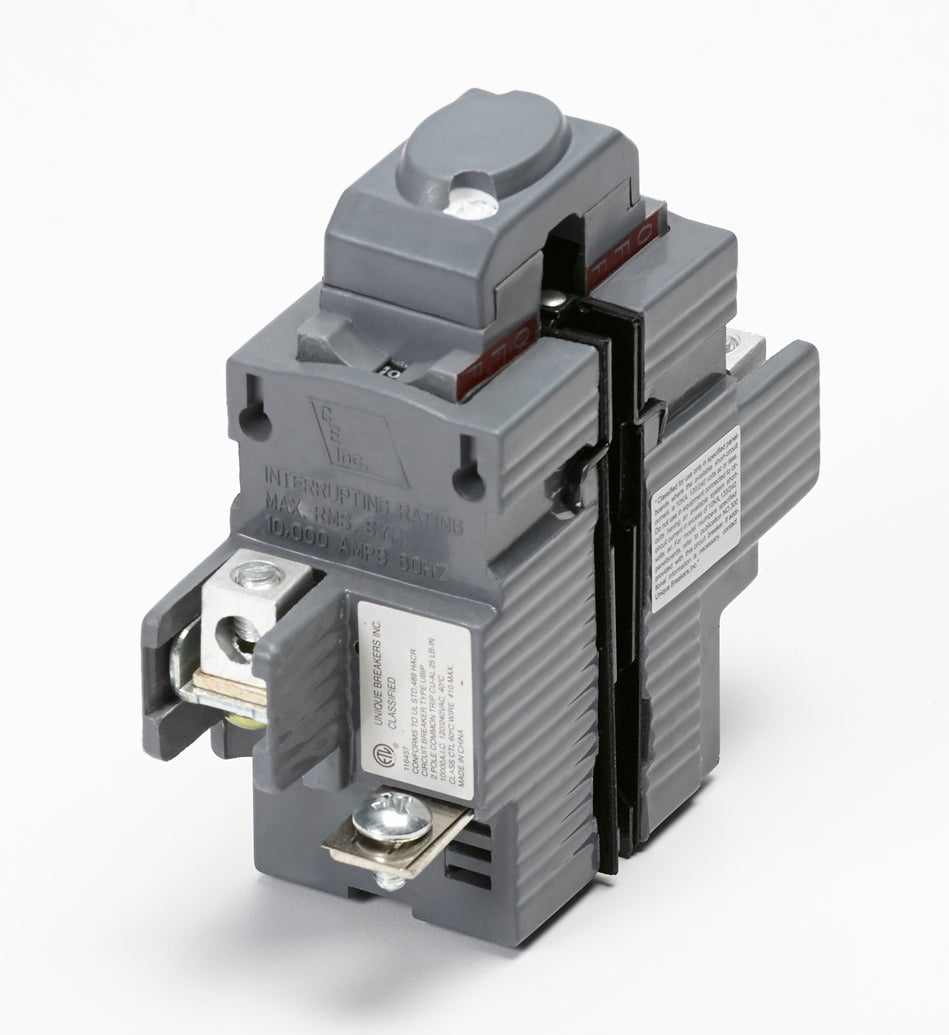

Connecticut Electric UBIP260 2-Pole 60A Plug In Replacement Circuit Breaker

Product Description

Connecticut Electric UBIP260 is a 2-pole, 60 amp plug-in circuit breaker designed for use in Pushmatic load centers. This model operates at 120/240 VAC and features thermal/magnetic trip technology for reliable performance. It has an interrupt rating of 10 kA, ensuring safety during overloads.

• 60 amp capacity
• Compatible with Pushmatic load centers
• UL listed for quality assurance

Product Highlights

This circuit breaker has a compact design with dimensions of three point eighty-one inches in length, one point five inches in width, and three point fifty-three inches in height. It is built to handle temperatures up to forty degrees Celsius and is intended for one-phase applications.

Product Information

Standard Information

• Manufacturer: Connecticut Electric
• Model Number: UBIP260

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 60 A
• Number of Poles: 2
• Application: For use in Pushmatic load centers
• Frequency Rating: 50/60 Hz
• Trip Type: Thermal/Magnetic
• Temperature Rating: 40 deg C
• Dimensions: 3.81 in L x 1.5 in W x 3.53 in H
