Product Description

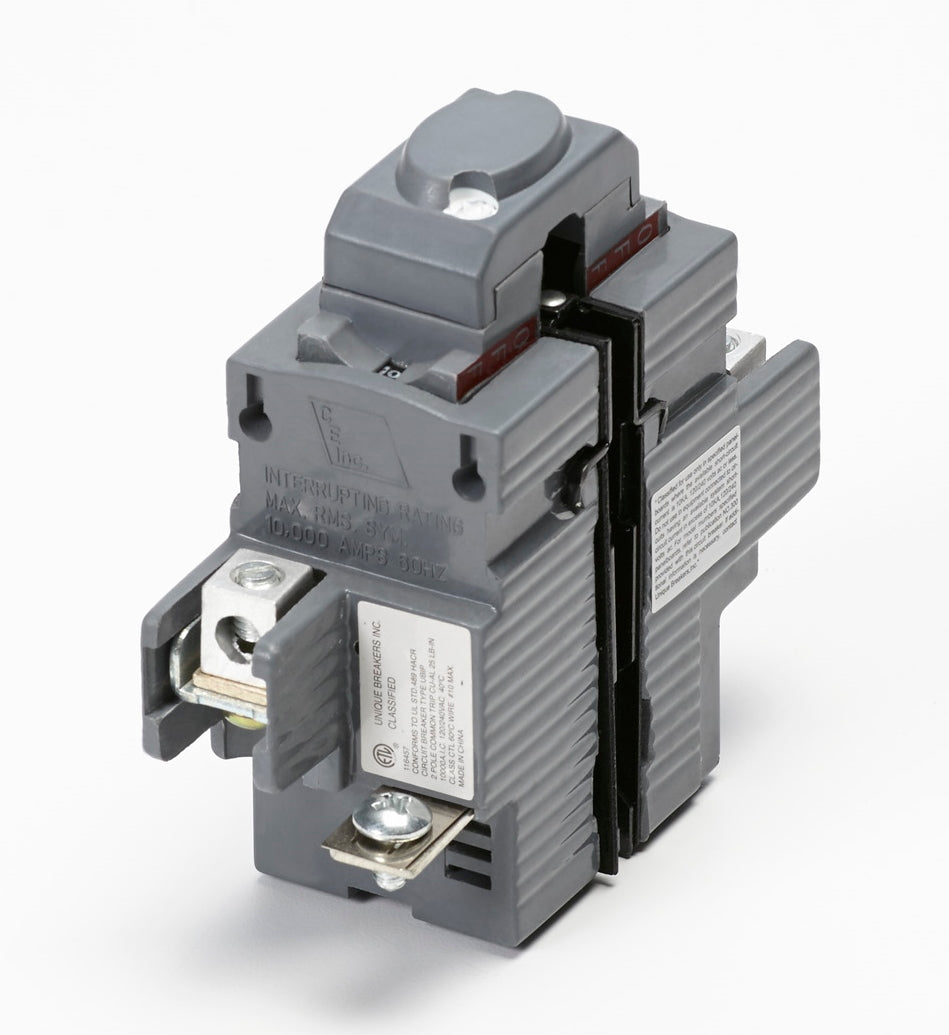

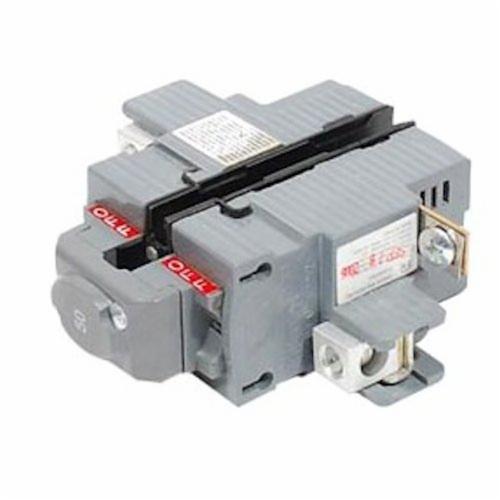

Connecticut Electric UBIP240 is a replacement circuit breaker designed for use in Pushmatic load centers. It operates at 120/240 VAC and has a 40 amp rating. This thermal/magnetic trip breaker is suitable for single-phase systems. It features a bolt-on connection and can handle wire sizes from fourteen to three AWG. The breaker dimensions are three point eighty-one inches in length, one point five inches in width, and three point fifty-three inches in height.
- Replacement circuit breaker for Pushmatic load centers.
- Voltage rating of 120/240 VAC and operating frequency of 50/60 Hz.
- Features 40 amp capacity with thermal/magnetic trip protection.
Product Highlights
This breaker model is an essential component for maintaining electrical safety and system reliability.
Product Information
Standard Information
-
Manufacturer: Connecticut Electric
-
UPC: 09492503106
Technical Specifications
-
Type: Type P HACR/SWD Rated
-
Amperage Rating: 40 A
-
Voltage Rating: 120/240 VAC
-
Frequency Rating: 50/60 Hz
-
Number of Poles: 2
-
Connection Type: Bolt-On
-
Temperature Rating: 40 deg C
-
Dimensions: 3.81 in L x 1.5 in W x 3.53 in H
-
Standards/Approvals: ETL Listed, CE Certified, UL 489
