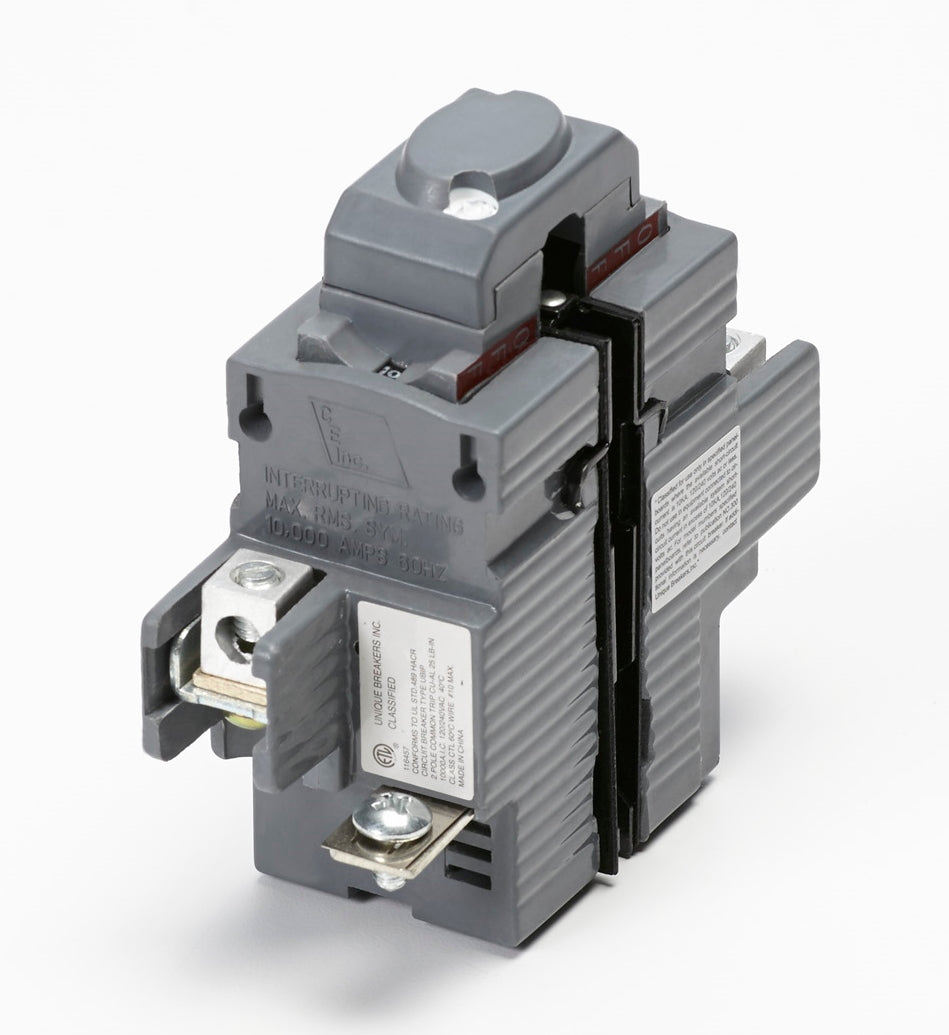

Connecticut Electric UBIP230 Circuit Breaker 30A 2-Pole

Product Description

The Connecticut Electric UBIP230 is a thermal/magnetic circuit breaker designed for use in Pushmatic load centers. This two-pole breaker operates at a voltage of 120/240 VAC and is rated for 30 amps. It features a handle actuator and bolted-on mounting for secure installation.

• Suitable for Pushmatic and Bulldog load centers
• UL Listed and cETLus Listed
• Interrupt rating of 10 kA

Product Highlights

This circuit breaker is ideal for residential and commercial electrical systems, providing effective overcurrent protection while maintaining system integrity.

Product Information

Standard Information

• Manufacturer: Connecticut Electric
• MPN: UBIP230

Technical Specifications

• Type: Type P
• Phase: 1 ph
• Amperage Rating: 30 A
• Voltage Rating: 120/240 VAC
• Frequency Rating: 50/60 Hz
• Dimensions: 3.81 in L x 1.5 in W x 3.53 in H
• Number of Poles: 2
• Trip Type: Thermal/Magnetic
• Temperature Rating: 40 deg C
• Material: DMC
• Mounting Type: Bolted-On
• Standards/Approvals: UL Listed, cETLus Listed
