Product Description

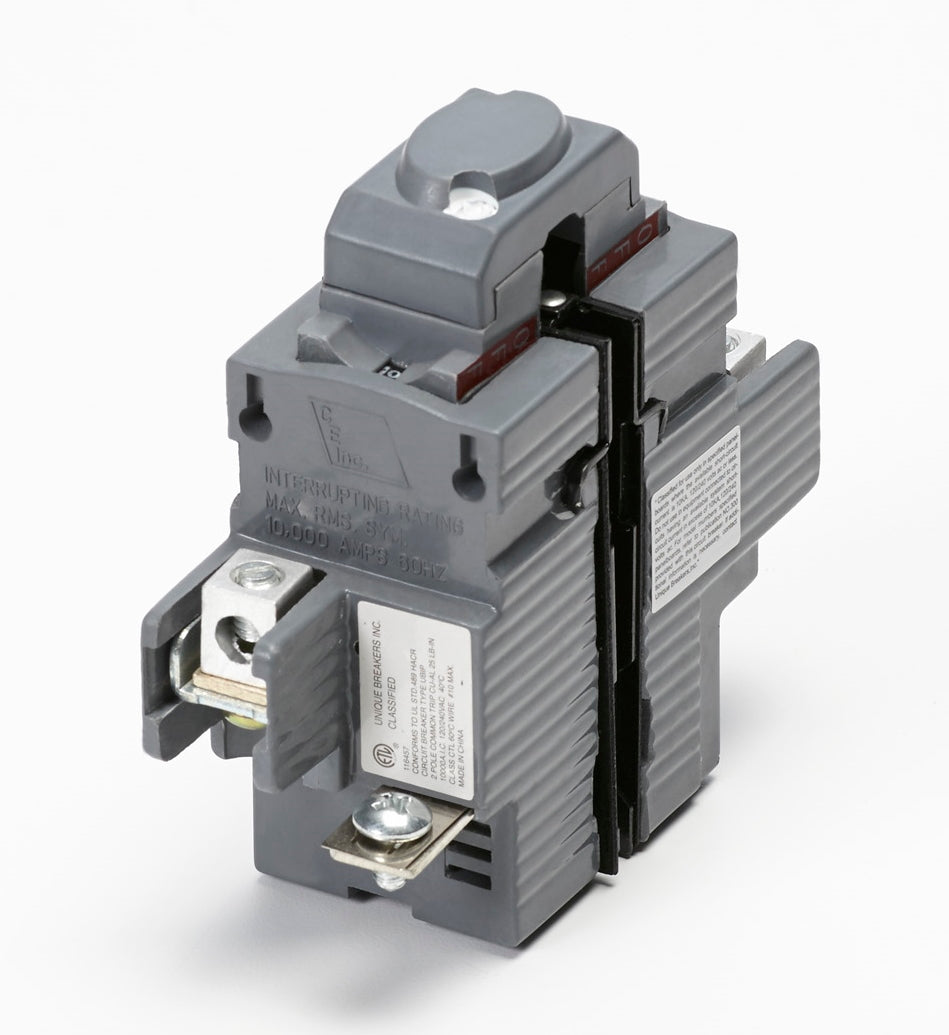

Connecticut Electric offers the UBIP220 replacement circuit breaker. This model is designed for use in Pushmatic load centers and features a thermal/magnetic trip mechanism. It operates at 120/240 VAC and has a current rating of twenty amperes. The breaker is built to handle a short circuit interrupt rating of ten kiloamperes.
- Replacement for Pushmatic load centers
- Handles wire sizes from fourteen to four AWG
- Mounting type is bolted-on for stability
Product Highlights
Reliable circuit protection for electrical systems. Suitable for residential and commercial applications with a straightforward installation process.
Product Information
Standard Information
-
Manufacturer: Connecticut Electric
-
Manufacturer Part Number: UBIP220
Technical Specifications
-
Amperage Rating: 20 A
-
Voltage Rating: 120/240 VAC
-
Frequency Rating: 50/60 Hz
-
Number of Poles: 2
-
Actuator Type: Handle
-
Connection Type: Bolt-On
-
Temperature Rating: 40 deg C
-
Dimensions: 3.81 in L x 1.5 in W x 3.53 in H
-
Standards/Approvals: ETL Listed, CE Certified, UL 489
-
Application: For use in Pushmatic load centers
