Product Description

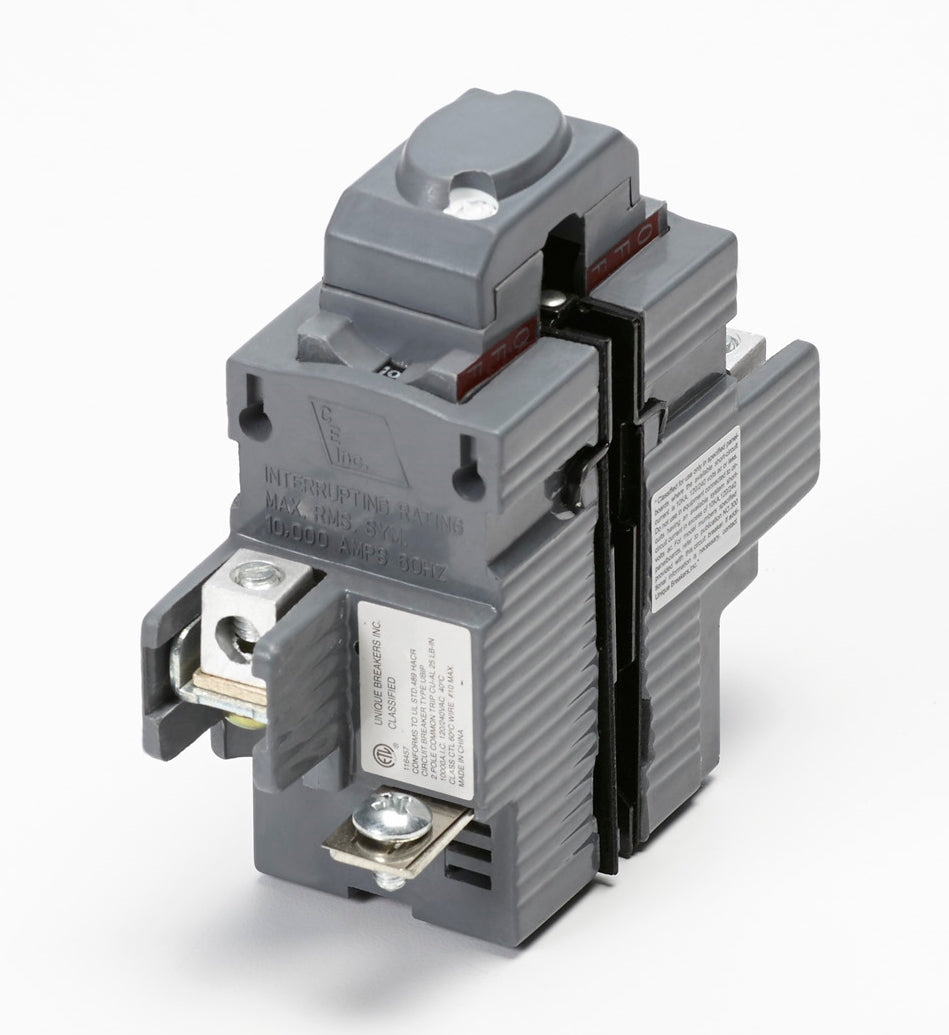

Connecticut Electric UBIP215 is a replacement circuit breaker designed for 120/240 VAC systems. This 2-pole thermal/magnetic circuit breaker has a continuous current rating of 15 A and features a 10 kA interrupting capacity.
- Type P HACR/SWD rated.
- For use in Pushmatic load centers.
- Bolt-on connection for easy installation.
Product Highlights
Reliable circuit breaker suitable for residential and commercial applications, providing overload and short circuit protection.
Product Information
Standard Information
-
Manufacturer: Connecticut Electric
-
UPC: 09492503103
Technical Specifications
-
MPN: UBIP215
-
Amperage Rating: 15 A
-
Voltage Rating: 120/240 VAC
-
Frequency Rating: 50/60 Hz
-
Number of Poles: 2
-
Dimensions: 3.81 in L x 1.5 in W x 3.53 in H
-
Temperature Rating: 40 deg C
-
Material: DMC
-
Trip Type: Thermal/Magnetic
-
Standards/Approvals: ETL Listed, CE Certified, UL 489
-
Mounting Type: Bolted-On
-
Actuator Type: Handle
-
Phase: 1 ph
-
Application: For use in Pushmatic load centers
