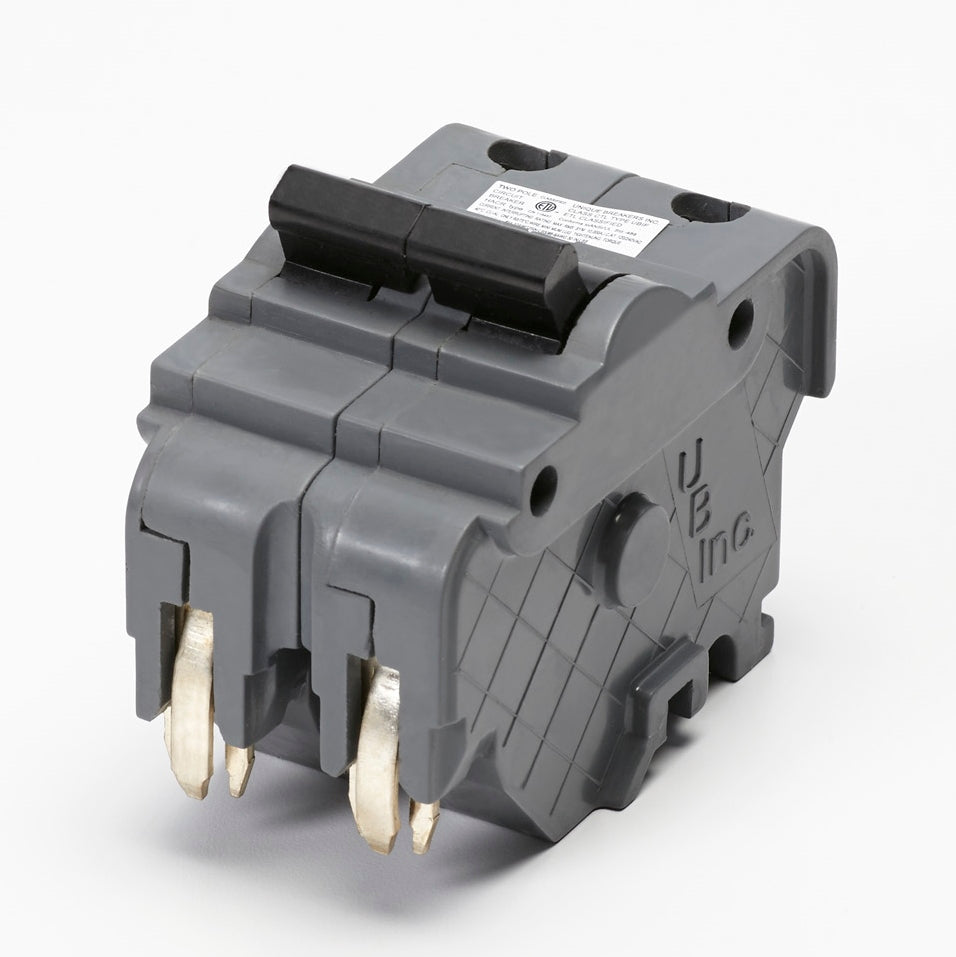

CONNECTICUT ELECTRIC UBIF260N CIRCUIT BREAKERS
CONNECTICUT ELECTRIC UBIF260N CIRCUIT BREAKERS

Connecticut Electric UBIF260N Type NC HACR Rated Thick Replacement Circuit Breaker, 120/240 VAC, 60 A, 10 kA Interrupt, 2 Poles

CONNECTICUT ELECTRIC
Brand: CONNECTICUT ELECTRIC
SKU: UBIF260N
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Connecticut Electric UBIF260N is a replacement circuit breaker. It is a Type NC HACR rated breaker suitable for two-pole applications at 120/240 VAC. This circuit breaker has an amperage rating of sixty amps and is designed for use in Federal Pacific Electric load centers.

  • Rated for 120/240 VAC
  • Thermal and magnetic trip technology
  • 10 kA interrupting capacity

Product Highlights

The UBIF260N breaker provides reliable protection against overloads. It supports easy installation with a push-on connection for quick service. The compact design fits standard electric panels.

Product Information

Standard Information

  • Manufacturer: Connecticut Electric
  • MPN: UBIF260N
Technical Specifications
Voltage Rating
120/240 VAC
Amperage Rating
60 A
Trip Type
Thermal/Magnetic
Dimensions
3.36 in L x 2 in W x 2.55 in H
Temperature Rating
40 deg C
Frequency Rating
50/60 Hz
Connection Type
Push-On
Number of Poles
2
Series
UBIF
Standards/Approvals
ETL Listed, CE Certified, UL 489
