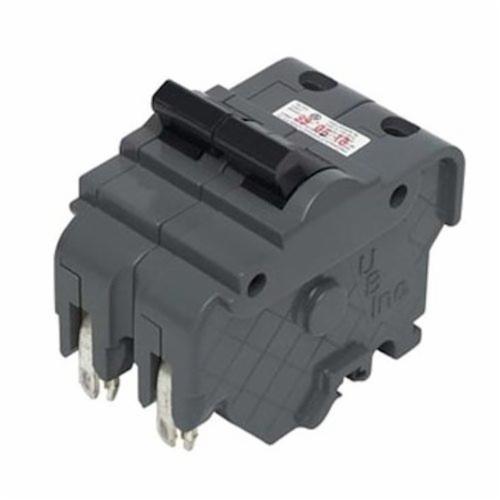

Connecticut Electric UBIF250N Thick 50 Amp 2 in 2-Pole Federal Pacific Stab-Lok NA250 Replacement Circuit Breaker

Product Description

The Connecticut Electric UBIF250N is a thick replacement circuit breaker designed for use in Federal Pacific Electric load centers. This device offers a voltage rating of 120/240 VAC and is rated for a maximum amperage of 50 A. With its thermal/magnetic trip, it ensures reliable protection against overloads and short circuits.

• Type NA HACR rated for heating, air conditioning, and refrigeration loads.
• 10 kA interrupt rating enhances safety by preventing damage during overloads.
• Designed for two-pole applications.

Product Highlights

This circuit breaker is suitable for a variety of settings, providing essential circuit protection in residential and light commercial applications. The compact design simplifies installation in load centers.

Product Information

Standard Information

• Brand: Connecticut Electric
• MPN: UBIF250N
• Application: For use in Federal Pacific Electric load centers

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 50 A
• Number Of Poles: 2
• Interrupt Rating: 10 kA
• Dimensions: 3.36 inches L x 2 inches W x 2.55 inches H
• Connection Type: Push-On
• Trip Type: Thermal Magnetic
• Temperature Rating: 40 deg C
• Wire Size: 14 to 6 AWG
• Frequency Rating: 50/60 Hz
• Standard & Approvals: ETL Listed, CE Certified, UL 489
