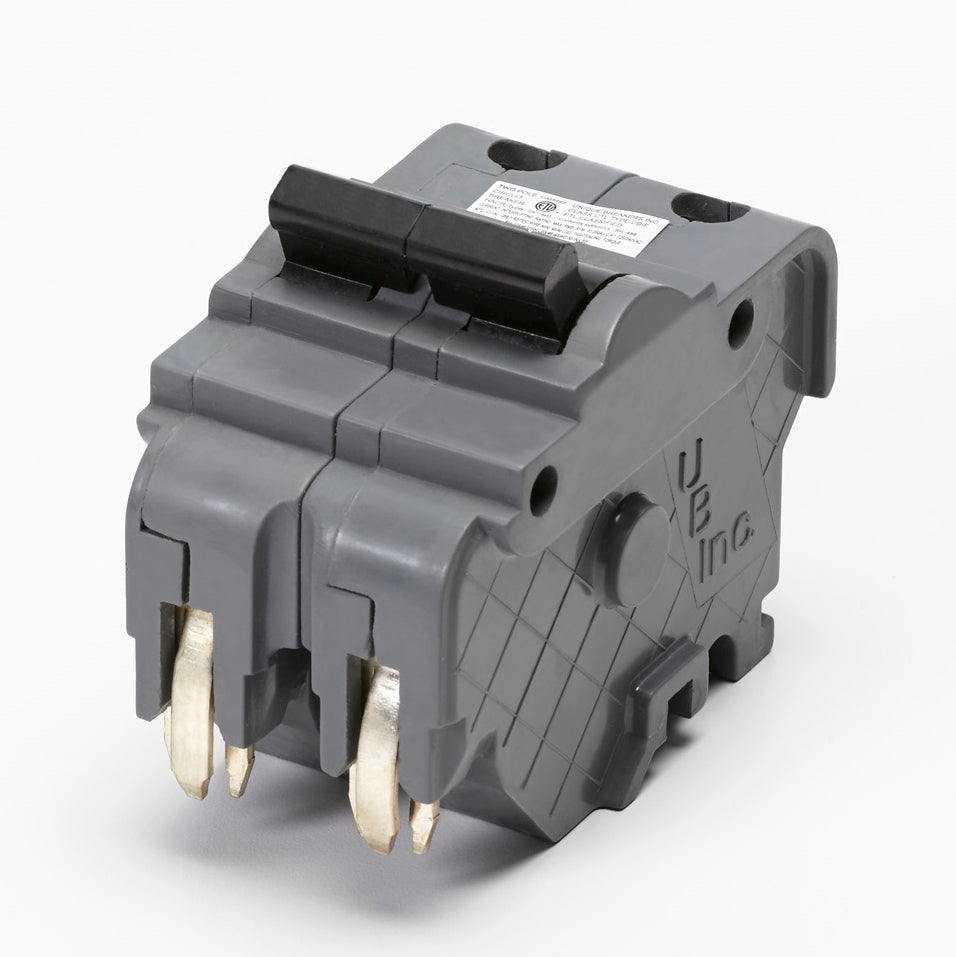

Connecticut Electric UBIF240N FPE240 2 Wide Replacement Circuit Breaker

Product Description

Connecticut Electric offers the UBIF240N replacement circuit breaker designed for efficient load management. This Type NC HACR Rated Thick circuit breaker is suitable for use in Federal Pacific Electric load centers. It operates on 120/240 VAC power with a 40 A rating and a ten kA interrupt capacity. The thermal/magnetic trip ensures safety and reliability in various applications.

• Voltage Rating: 120/240 VAC
• Amperage Rating: 40 A
• Two Poles and Compatible with 14 to 6 AWG Wire

Product Highlights

The design of the UBIF240N provides both ease of installation and effective circuit protection. This circuit breaker features a handle actuator for operation and is made from durable DMC material.

Product Information

Standard Information

• Manufacturer: Connecticut Electric
• MPN: UBIF240N

Technical Specifications

• Actuator Type: Handle
• Application: For use in Federal Pacific Electric load centers
• Connection Type: Push-On
• Dimensions: 3.36 in L x 2 in W x 2.55 in H
• Frequency Rating: 50/60 Hz
• Temperature Rating: 40 deg C
• Trip Type: Thermal/Magnetic
• Standards/Approvals: ETL Listed, CE Certified, UL 489
