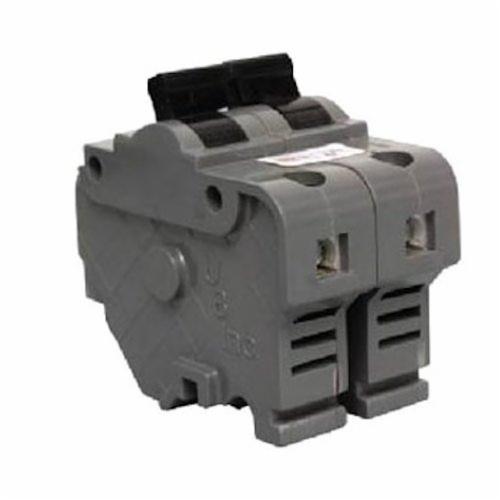

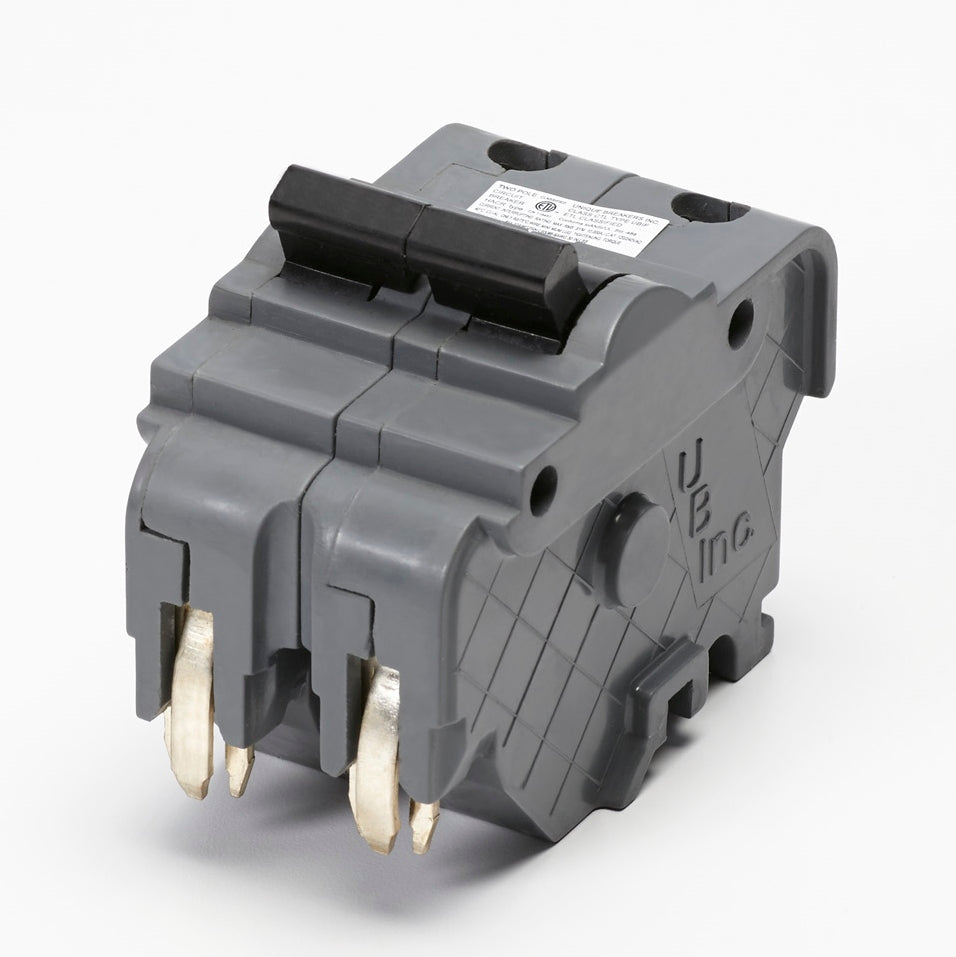

Connecticut Electric UBIF230N Type NC HACR Rated Thick Replacement Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, 2 Poles

Product Description

Connecticut Electric UBIF230N is a replacement circuit breaker designed with thermal and magnetic trip functions. It operates on a voltage of one hundred twenty to two hundred forty volts alternating current (VAC) and has an amperage rating of thirty amps. The device is constructed in compliance with established safety standards, making it suitable for use in Federal Pacific Electric load centers.

• Rated for two poles
• Capable of handling a ten kiloamp (kA) interrupt
• Compatible with wire sizes from fourteen to six American Wire Gauge (AWG)

Product Highlights

This breaker ensures reliable electrical protection and is capable of withstanding considerable fault currents. It includes a push-on connection for easy installation and is ideal for residential and commercial applications.

Product Information

Standard Information

• Manufacturer: Connecticut Electric
• UPC: 09492501941

Technical Specifications

• MPN: UBIF230N
• Voltage Rating: 120/240 VAC
• Amperage Rating: 30 A
• Trip Type: Thermal/Magnetic
• Number of Poles: 2
• Frequency Rating: 50/60 Hz
• Dimensions: 3.36 in L x 2 in W x 2.55 in H
• Material: DMC
• Temperature Rating: 40 deg C
• Standards/Approvals: ETL Listed, CE Certified, UL 489
