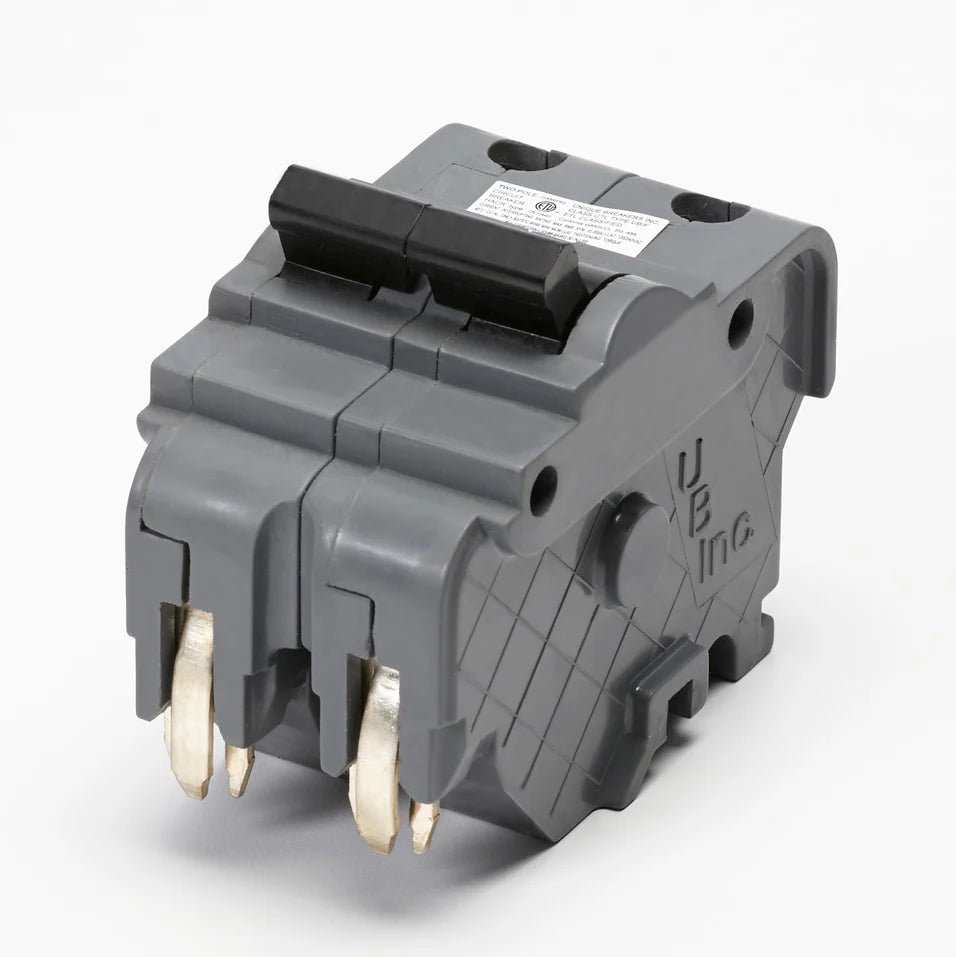

Connecticut Electric UBIF220N Circuit Breaker, 120/240 VAC, 20 A, 2 Poles

Product Description

Connecticut Electric UBIF220N Circuit Breaker is designed for use in electrical distribution systems. This two-pole breaker operates at 120/240 VAC and has a 20 A amperage rating. The product is capable of handling a 10000 A interrupt current, ensuring protection against overloads and short circuits.

• Designed for Federal Pacific electric type NA thick breakers
• Compact size for easy installation in various electrical panels
• ETL listed for safety compliance

Product Highlights

The Connecticut Electric UBIF220N is suitable for residential and light commercial applications.

Product Information

Standard Information

• Manufacturer: Connecticut Electric
• UPC: 09492501940

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 120/240 VAC
• Dimensions: 3.36 in L x 2 in W x 2.55 in H
• Number of Poles: 2
• Interrupt Rating: 10000 A
• Standards/Approvals: ETL Listed
• Application: For Federal Pacific electric type NA thick breakers
• Manufacturer Part Number: UBIF220N
