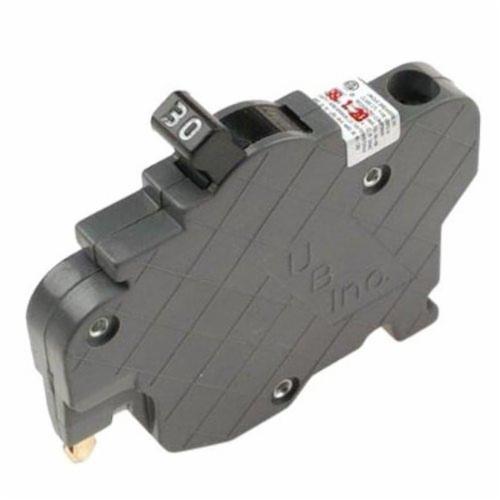

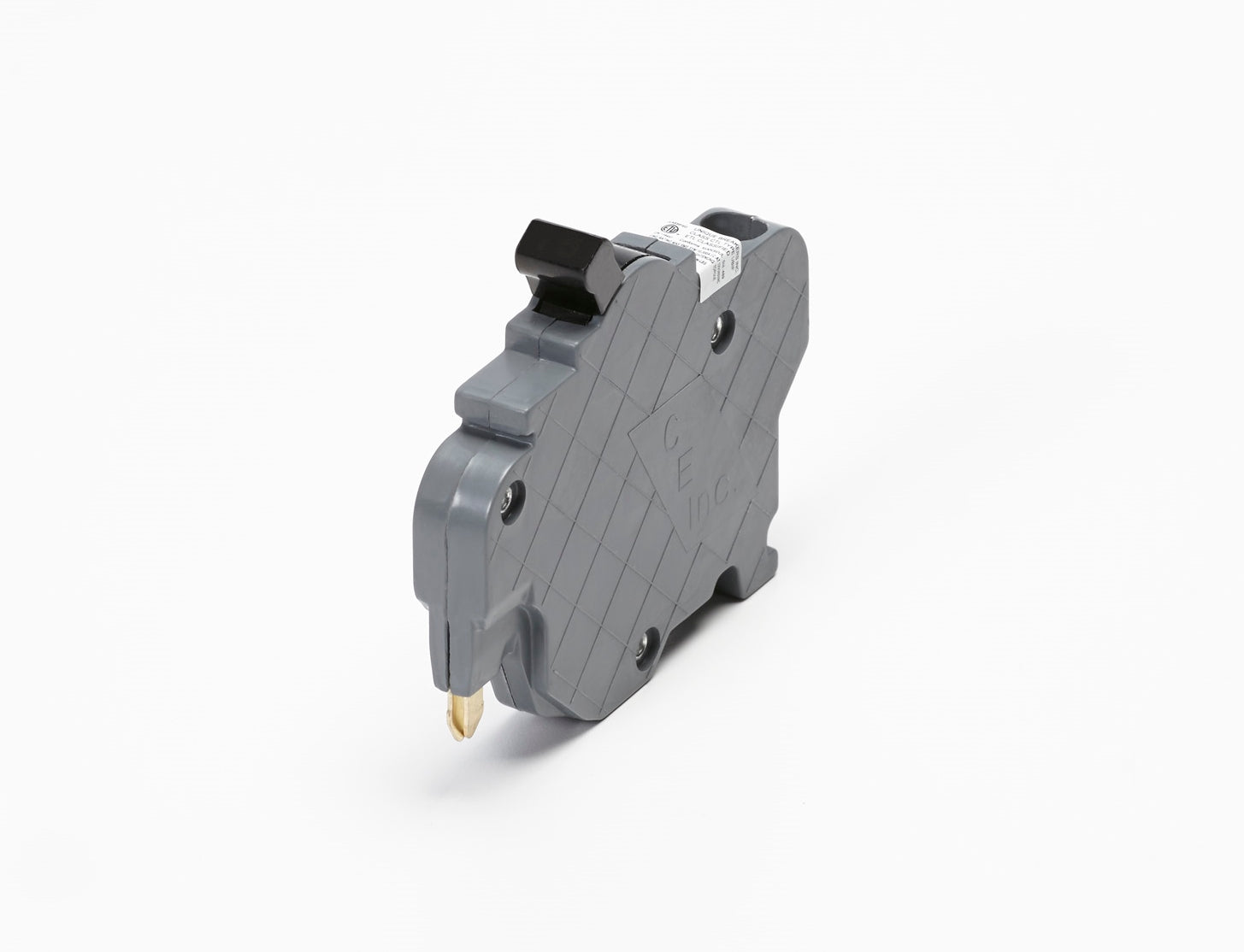

Connecticut Electric UBIF030N Thin 30 Amp 1-Pole Circuit Breaker

Product Description

Connecticut Electric offers the UBIF030N Type NC SWD Rated Thin Replacement Circuit Breaker. This circuit breaker is designed for 120 VAC systems with a current rating of 30 A. It functions at 50/60 Hz frequency and features a 10 kA interrupt rating. The unit has one pole and employs thermal/magnetic trip technology to enhance safety and reliability.

• Designed for Federal Pacific Electric load centers.
• Compatible with 14 to 4 AWG wire.
• Push-on connection type for easy installation.

Product Highlights

Ideal for various electrical applications, this breaker ensures dependable performance for residential and commercial settings.

Product Information

Standard Information

• Brand: Connecticut Electric
• MPN: UBIF030N

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 120 VAC
• Number of Poles: 1
• Dimensions: 3.36 in L x 0.5 in W x 2.55 in H
• Material: DMC
• Temperature Rating: 40 deg C
• Frequency Rating: 50/60 Hz
• Trip Type: Thermal/Magnetic
• Application: For use in Federal Pacific Electric load centers
• Standards/Approvals: ETL Listed, CE Certified, UL 489
