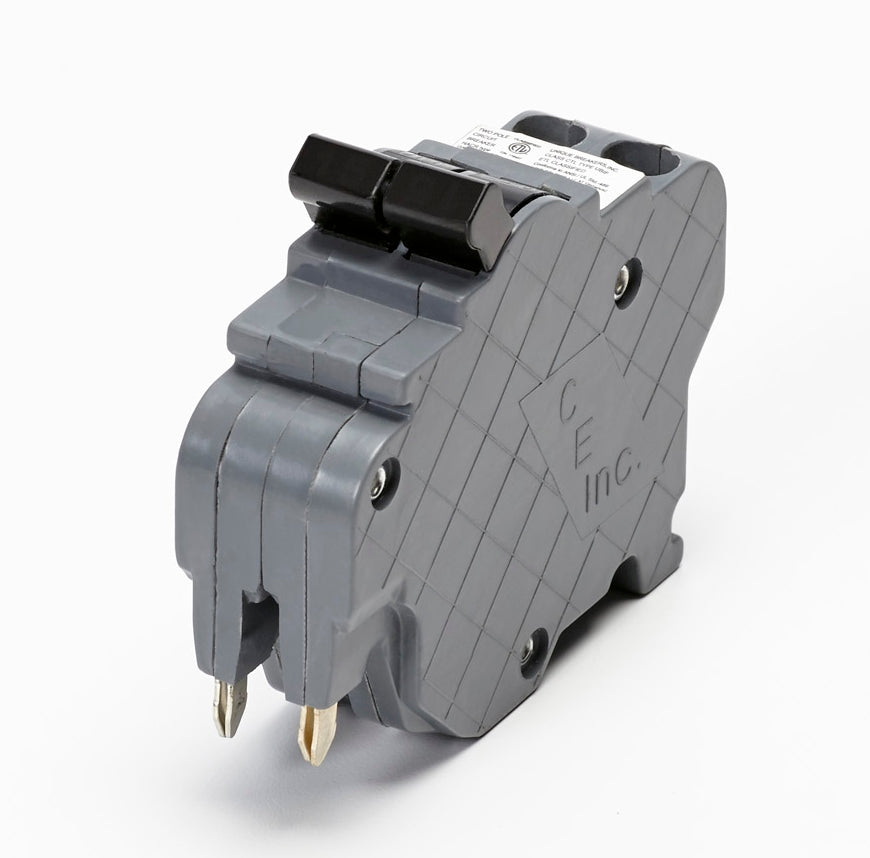

Connecticut Electric UBIF0250N Circuit Breaker Type UBIF (Thin) 50A

Product Description

The Connecticut Electric UBIF0250N is a circuit breaker designed for use in electrical systems. This model features a thermal and magnetic trip mechanism which ensures reliable operation. It is rated for 50 amperes and operates at 120/240 VAC. The circuit breaker has two poles and is compatible with Federal Pacific Electric load centers.

• Thermal/Magnetic Trip Type
• Two Poles for Dual Circuit Control
• Designed for 50 Amperes at 120/240 VAC

Product Highlights

This circuit breaker provides essential overcurrent protection, safeguarding electrical circuits from overload conditions.

Product Information

Standard Information

• Manufacturer: Connecticut Electric
• UPC: 09492501936

Technical Specifications

• Actuator Type: Handle
• Amperage Rating: 50 A
• Voltage Rating: 120/240 VAC
• Series: UBIF
• Dimensions: 3.36 in L x 1 in W x 2.55 in H
• Frequency Rating: 50/60 Hz
• Connection Type: Push-On
• Trip Type: Thermal/Magnetic
• Interrupt Rating: 10 kA
• Temperature Rating: 40 deg C
