Connecticut Electric UBIF0240N Thin 40 Amp 1 in 2-Pole Federal Pacific Stab-Lok NC240 Replacement Circuit Breaker

Product Description

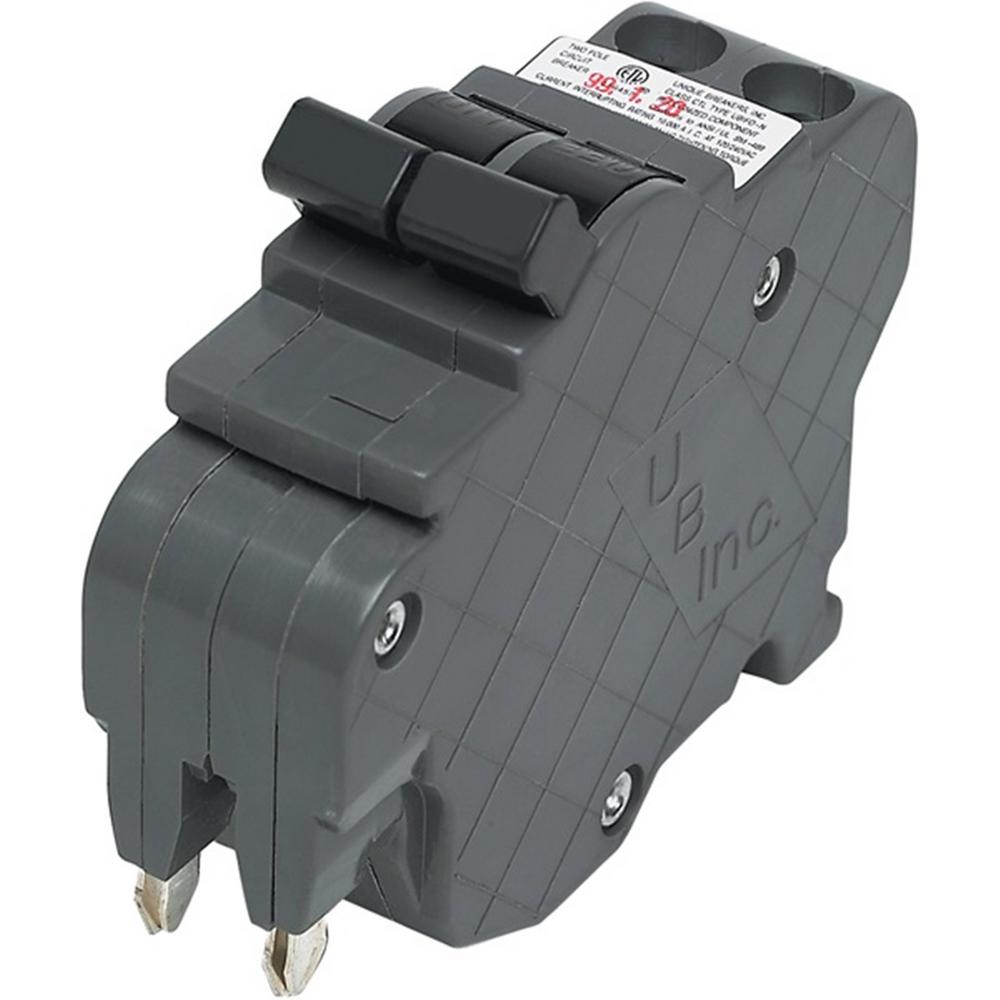

The Connecticut Electric UBIF0240N is a replacement circuit breaker designed for use in Federal Pacific Electric load centers. This thin circuit breaker is rated for forty amps and is equipped with two poles. It operates on 120/240 VAC and features a thermal/magnetic trip mechanism for added reliability.

• Type NC HACR rating for compatibility with various applications
• 10 kA interrupt rating to protect against overloads
• Push-on connection type for secure installation

Product Highlights

This circuit breaker provides safety and efficiency for electrical systems, particularly in residential and commercial settings.

Product Information

Standard Information

• Brand: Connecticut Electric
• Application: For use in Federal Pacific Electric load centers

Technical Specifications

• MPN: UBIF0240N
• Voltage Rating: 120/240 VAC
• Amperage Rating: 40 A
• Interrupt Rating: 10 kA
• Wire Size: 14 to 8 AWG
• Connection Type: Push-On
• Number Of Poles: 2
• Dimensions: 3.36 in L x 1 in W x 2.55 in H
