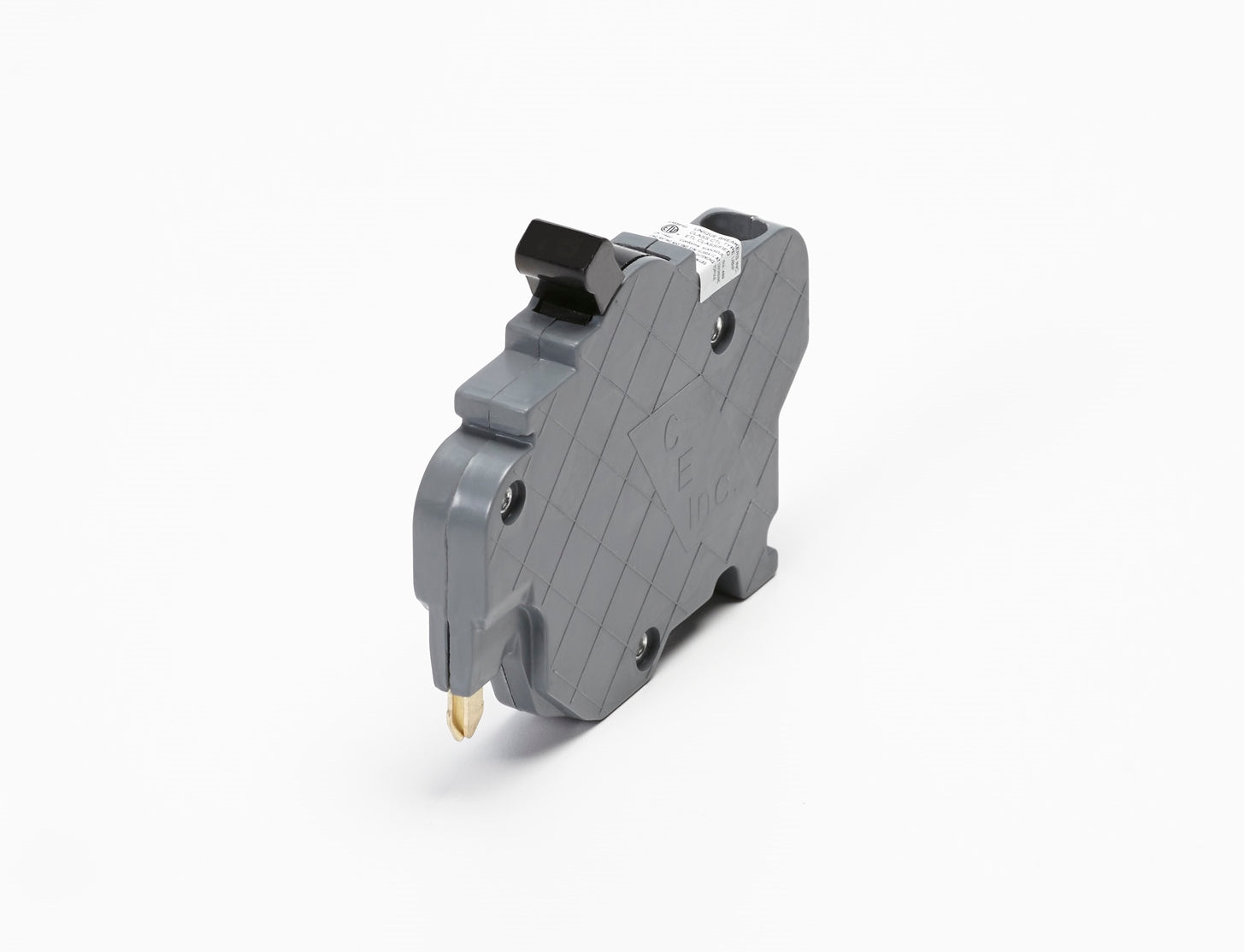

Connecticut Electric UBIF020N UBIF Thin Molded Case Circuit Breaker 120/240 VAC 20 A 10 kA Interrupt

Product Description

Connecticut Electric UBIF020N is a molded case circuit breaker designed for Federal Pacific Electric load centers. This breaker operates at 120/240 VAC with a current rating of twenty amperes and a ten kA interrupt capacity. The slim design allows easy installation in tight spaces. This unit features a lug connection and is suitable for 14 to 10 AWG wire sizes. It measures three point three five inches high, two point six five inches wide, and a half inch deep.

• Voltage Rating: 120/240 VAC
• Amperage Rating: 20 A
• Interrupt Rating: 10 kA

Product Highlights

This circuit breaker is ETL listed and SWD rated, ensuring compliance with safety standards. Its one-pole configuration and panel mounting make it ideal for various applications in electrical distribution systems.

Product Information

Standard Information

• Manufacturer: Connecticut Electric
• UPC: 09492501931

Technical Specifications

• Amperage Rating: 20 A
• Application: For Federal Pacific Electric Load centers
• Connection Type: Lug
• Dimensions: 3.35 in H x 2.65 in W x 0.5 in D
• Frame: 125 A
• Mounting Type: Panel
• Number of Poles: 1
• Phase: 1
• Series: UBIF
• Standards/Approvals: ETL Listed | SWD Rated
• Type: Thin
• Voltage Rating: 120/240 VAC
