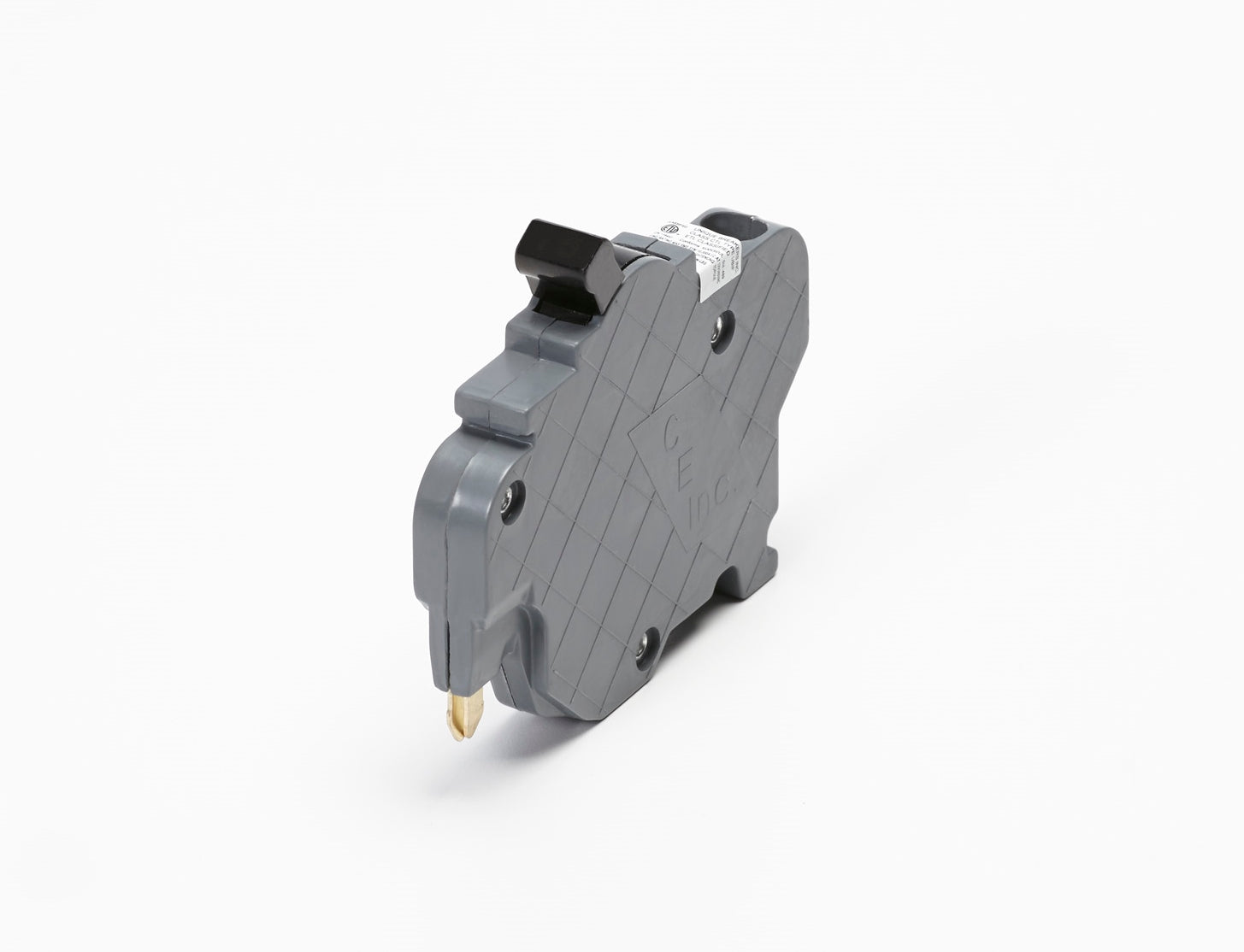

Connecticut Electric UBIF015N Circuit Breaker Type UBIF 1-Pole 15A

Product Description

Connecticut Electric UBIF015N is a single-pole circuit breaker designed for thermal and magnetic trip protection. It operates at a voltage of 120 VAC and provides an amperage rating of fifteen. This breaker is part of the UBIF series, known for its compatibility with Federal Pacific Electric load centers.

• Compact design for space-saving installation
• Quick push-on connection for easy wiring
• Includes a thermal/magnetic trip mechanism for enhanced safety

Product Highlights

This circuit breaker offers reliable performance and is suitable for residential applications where space is limited. It features handle actuation and is designed to interrupt at a capability of ten kA.

Product Information

Standard Information

• Manufacturer: Connecticut Electric
• UPC: 09492501930

Technical Specifications

• Type: Type NC SWD Rated Thin
• Amperage Rating: 15 A
• Voltage Rating: 120 VAC
• Frequency Rating: 50/60 Hz
• Number of Poles: 1
• Dimensions: 3.36 in L x 0.5 in W x 2.55 in H
• Temperature Rating: 40 deg C
• Trip Type: Thermal/Magnetic
• Material: DMC
• Interrupt Rating: 10 kA
• Connection Type: Push-On
• Phase: 1
• Series: UBIF
• Standards/Approvals: ETL Listed, CE Certified, UL 489
• Application: For use in Federal Pacific Electric load centers
