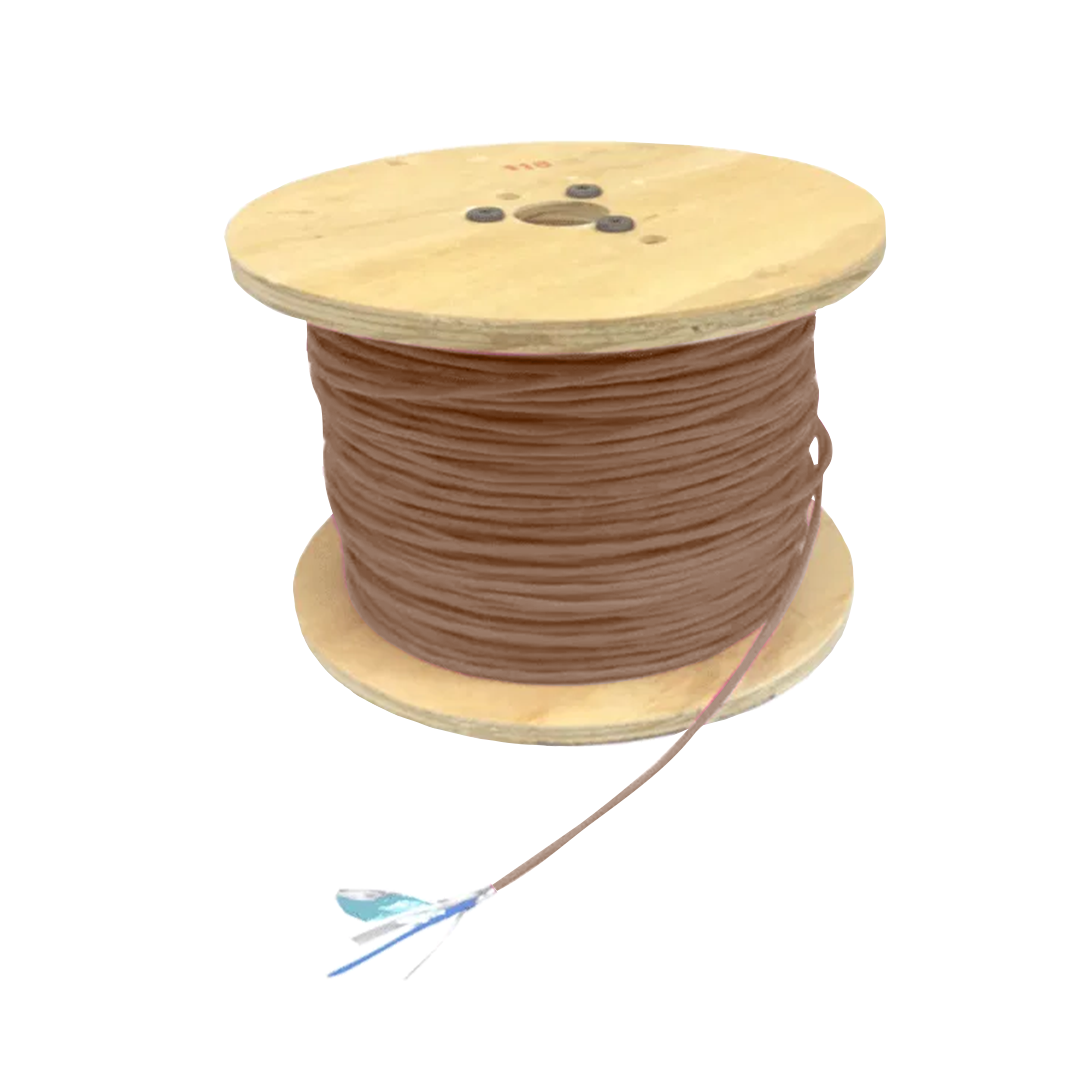

Conn-air w222p-2147brnjc 22AWG 2PR Plenum Control Cable

Product Description

The CONN-AIR w222p-2147brnjc is a 22 AWG, 2-pair foil shielded Class 2 plenum-rated control cable designed for low-voltage signal and control wiring in commercial and light-industrial environments. The cable carries a CL2P NEC type rating and is listed under NEC Article 725 at 75 degrees C and 150 volts, and NEC Article 800 at 75 degrees C and 300 volts. Conductors are 7/30 stranded tinned copper per ASTM B33, with 100 percent FlexFoil aluminum and polyester foil shielding with a minimum 25 percent overlap. The brown outer jacket with Black-White and Brown-Red pair identification supports straightforward termination and trace-back during service.

This cable is suited for EIA RS-232 circuits, remote control circuits, process control and instrumentation runs, and power-limited control circuits in plenum air-handling spaces. Its plenum construction meets the fire and smoke requirements for installation in environmental air spaces without conduit, making it a standard choice for above-ceiling and in-wall control runs in commercial HVAC, building automation, and low-voltage systems. The outer diameter of 0.157 inches allows routing through standard conduit and cable trays alongside other low-voltage wiring.

Key Features

• CL2P plenum rating meets NEC Article 725 and NEC Article 800 requirements for air-handling spaces
• 100 percent FlexFoil aluminum and polyester foil shield with minimum 25 percent overlap for signal integrity
• 7/30 stranded tinned copper conductors per ASTM B33 for flexibility and corrosion resistance
• Brown jacket with Black-White and Brown-Red pair coding for easy field identification
• Sequential footage markings printed on jacket to simplify measuring and documentation during installation
• Ripcord available for clean jacket removal — consult customer service for details

Compatibility

Designed as an OEM-style plenum control cable for use in EIA RS-232, remote control, process control, instrumentation, and power-limited Class 2 control circuit applications.

Installation Notes

Installation should be performed by a licensed low-voltage or electrical contractor in accordance with NEC Article 725 and Article 800 and all applicable local codes. De-energize all circuits before terminating or splicing. Do not exceed the rated voltage or temperature limits during installation or operation. Route and secure cable per applicable NEC bending radius and support interval requirements to avoid jacket or shield damage.

Technical Specifications

• Gauge Size: 22 AWG
• Pair Count: 2
• Strand Configuration: 7/30
• Conductor Material: Stranded Tinned Copper, ASTM B33
• Shield: 100 percent FlexFoil Aluminum and Polyester Foil with 25 percent overlap minimum
• Drain Wire: Stranded Tinned Copper
• NEC Type: CL2P
• Voltage Rating: 150 volts (NEC Art. 725) / 300 volts (NEC Art. 800)
• Temperature Rating: -20 degrees C to +75 degrees C
• Outer Diameter: 0.157 inches
• Insulation Thickness (Nylon): 0.18 inches
• Insulation Thickness (PVC): 0.01 inches
• Jacket Color: Brown (Black-White, Brown-Red pairs)
• Jacket Material: Flex Plenum
• Markings: Sequential Footage Markings

Standard Information

• Brand: CONN-AIR
• Manufacturer Part Number: w222p-2147brnjc
